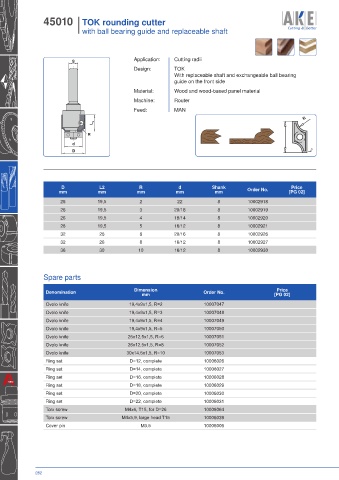

Page 286 - Catalogue_2025+

45010 I TOK rounding cutter
I with ball bearing guide and replaceable shaft

Application: Cutting radii
S
Design: TOK
With replaceable shaft and exchangeable ball bearing
guide on the front side
Material: Wood and wood-based panel material
Machine: Router
Feed: MAN
R
L 2

R
d
D L 2

D L2 R d Shank Price
mm mm mm mm mm Order No. [PG 02]

26 19,5 2 22 8 10002918
26 19,5 3 20/18 8 10002919
26 19,5 4 18/14 8 10002920
26 19,5 5 16/12 8 10002921
32 26 6 20/16 8 10002926
32 26 8 16/12 8 10002927
36 30 10 16/12 8 10002930

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Ovolo knife 19,4x9x1,5, R=2 10007047
Ovolo knife 19,4x9x1,5, R=3 10007048
Ovolo knife 19,4x9x1,5, R=4 10007049
Ovolo knife 19,4x9x1,5, R=5 10007050
Ovolo knife 26x12,5x1,5, R=6 10007051
Ovolo knife 26x12,5x1,5, R=8 10007052
Ovolo knife 30x14,5x1,5, R=10 10007053
Ring set D=12, complete 10006026
Ring set D=14, complete 10006027
Ring set D=16, complete 10006028
Ring set D=18, complete 10006029
Ring set D=20, complete 10006030
Ring set D=22, complete 10006031
Torx screw M4x6, T15, for D=26 10006064
Torx screw M4x5,9, large head T15 10006039
Cover pin M3,5 10006006

282
