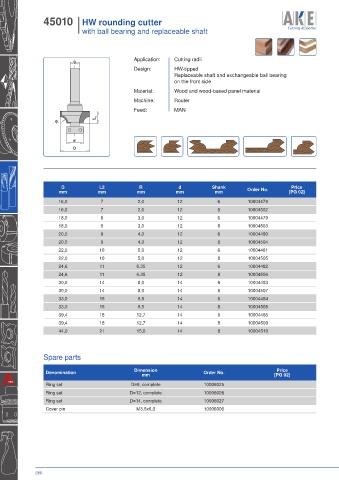

45010 I HW rounding cutter
24620 c S. 169
I with ball bearing and replaceable shaft

Application: Cutting radii
S
Design: HW-tipped
Replaceable shaft and exchangeable ball bearing
on the front side
Material: Wood and wood-based panel material
Machine: Router
Feed: MAN

L 2
R

d
D

D L2 R d Shank Price
mm mm mm mm mm Order No. [PG 02]

16,0 7 2,0 12 6 10004478
16,0 7 2,0 12 8 10004502
18,0 8 3,0 12 6 10004479
18,0 8 3,0 12 8 10004503
20,0 9 4,0 12 6 10004480
20,0 9 4,0 12 8 10004504
22,0 10 5,0 12 6 10004481
22,0 10 5,0 12 8 10004505
24,6 11 6,35 12 6 10004482
24,6 11 6,35 12 8 10004506
30,0 14 8,0 14 6 10004483
30,0 14 8,0 14 8 10004507
33,0 15 9,5 14 6 10004484
33,0 15 9,5 14 8 10004508
39,4 18 12,7 14 6 10004485
39,4 18 12,7 14 8 10004509
44,0 21 15,0 14 8 10004510

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Ring set D=9, complete 10006025
Ring set D=12, complete 10006026
Ring set D=14, complete 10006027
Cover pin M3,5x6,0 10006006

280
