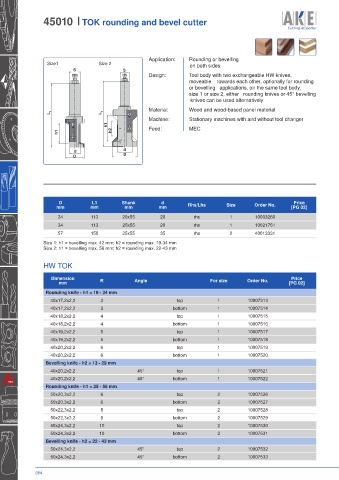

45010 I TOK rounding and bevel cutter

Application: Rounding or bevelling
Size1 Size 2 on both sides
S S
Design: Tool body with two exchangeable HW knives,
moveable towards each other, optionally for rounding
or bevelling applications, on the same tool body,
size 1 or size 2, either rounding knives or 45° bevelling
knives can be used alternatively
Material: Wood and wood-based panel material
L 1 L 1
Machine: Stationary machines with and without tool changer
h1 Feed: MEC
h1 h2

d d
D D

D L1 Shank d Price
mm mm mm mm Rhs/Lhs Size Order No. [PG 02]
34 113 20x55 20 rhs 1 10003260
34 113 25x55 20 rhs 1 10021751
57 150 25x55 35 rhs 2 40013331
Size 1: h1 = bevelling max. 42 mm; h2 = rounding max. 19-34 mm
Size 2: h1 = bevelling max. 56 mm; h2 = rounding max. 22-43 mm

HW TOK

Dimension R Angle For size Order No. Price
mm [PG 02]
Rounding knife - h1 = 19 - 34 mm
40x17,2x2,2 3 top 1 10007513
40x17,2x2,2 3 bottom 1 10007514
40x18,2x2,2 4 top 1 10007515
40x18,2x2,2 4 bottom 1 10007516
40x19,2x2,2 5 top 1 10007517
40x19,2x2,2 5 bottom 1 10007518
40x20,2x2,2 6 top 1 10007519
40x20,2x2,2 6 bottom 1 10007520
Bevelling knife - h2 = 13 - 29 mm
40x20,2x2,2 45° top 1 10007521
40x20,2x2,2 45° bottom 1 10007522
Rounding knife - h1 = 35 - 56 mm
50x20,3x2,2 6 top 2 10007526
50x20,3x2,2 6 bottom 2 10007527
50x22,3x2,2 8 top 2 10007528
50x22,3x2,2 8 bottom 2 10007529
50x24,3x2,2 10 top 2 10007530
50x24,3x2,2 10 bottom 2 10007531
Bevelling knife - h2 = 22 - 43 mm
50x24,3x2,2 45° top 2 10007532
50x24,3x2,2 45° bottom 2 10007533
