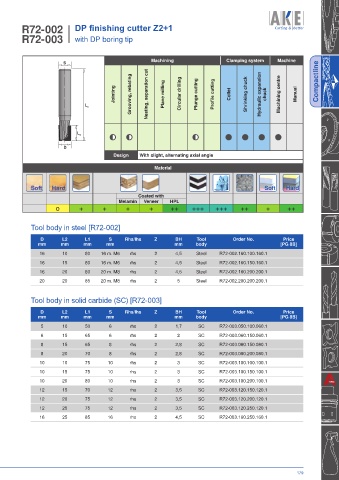

Page 183 - Catalogue_2025+

R72-002 DP finishing cutter Z2+1
R72-003 with DP boring tip

Machining Clamping system Machine
S

Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual Compactline

L 1

L 2

D
Design With slight, alternating axial angle

Material

Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++

Tool body in steel [R72-002]

D L2 L1 S Rhs/lhs Z BH Tool Order No. Price
mm mm mm mm mm body [PG 8B]
16 10 80 16 m. M6 rhs 2 4,5 Steel R72-002.160.100.160.1
16 15 80 16 m. M6 rhs 2 4,5 Steel R72-002.160.150.160.1
16 20 80 20 m. M8 rhs 2 4,5 Steel R72-002.160.200.200.1
20 20 85 20 m. M8 rhs 2 5 Steel R72-002.200.200.200.1

Tool body in solid carbide (SC) [R72-003]

D L2 L1 S Rhs/lhs Z BH Tool Order No. Price
mm mm mm mm mm body [PG 8B]
5 10 50 6 rhs 2 1,7 SC R72-003.050.100.060.1
6 15 65 6 rhs 2 2 SC R72-003.060.150.060.1
8 15 65 8 rhs 2 2,8 SC R72-003.080.150.080.1
8 20 70 8 rhs 2 2,8 SC R72-003.080.200.080.1
10 10 75 10 rhs 2 3 SC R72-003.100.100.100.1
10 15 75 10 rhs 2 3 SC R72-003.100.150.100.1
10 20 80 10 rhs 2 3 SC R72-003.100.200.100.1
12 15 70 12 rhs 2 3,5 SC R72-003.120.150.120.1
12 20 75 12 rhs 2 3,5 SC R72-003.120.200.120.1
12 25 75 12 rhs 2 3,5 SC R72-003.120.250.120.1
16 25 85 16 rhs 2 4,5 SC R72-003.160.250.160.1
