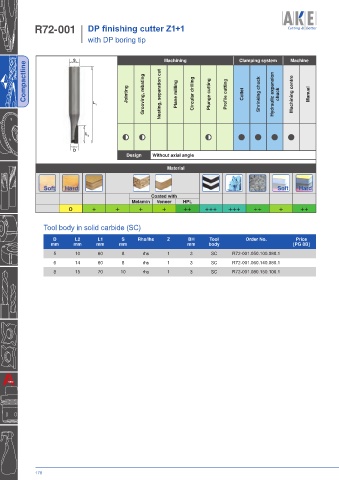

P. 182
R72-001 DP finishing cutter Z1+1
with DP boring tip
S Machining Clamping system Machine
Compactline L 1 Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
L 2
D
Design Without axial angle
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool body in solid carbide (SC)
D L2 L1 S Rhs/lhs Z BH Tool Order No. Price
mm mm mm mm mm body [PG 8B]
5 10 60 8 rhs 1 3 SC R72-001.050.100.080.1
6 14 60 8 rhs 1 3 SC R72-001.060.140.080.1
8 15 70 10 rhs 1 3 SC R72-001.080.150.100.1
