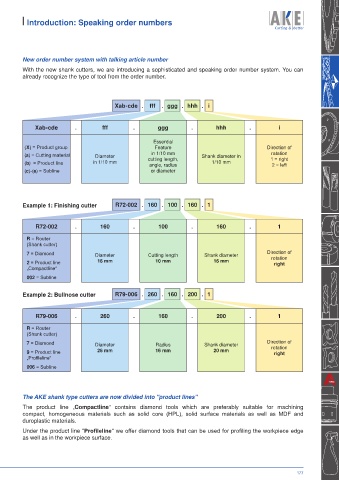

I Introduction: Speaking order numbers

New order number system with talking article number
With the new shank cutters, we are introducing a sophisticated and speaking order number system. You can
already rocognize the type of tool from the order number.

Xab-cde . fff . ggg . hhh . i

Xab-cde . fff . ggg . hhh . i

Essential
(X) = Product group Feature Direction of
ratation
in 1/10 mm
(a) = Cutting material Diameter cutting length, Shank diameter in 1 = right
(b) = Product line in 1/10 mm angle, radius 1/10 mm 2 = left
(c)-(e) = Subline or diameter

Example 1: Finishing cutter R72-002 . 160 . 100 . 160 . 1

R72-002 . 160 . 100 . 160 . 1

R = Router
(Shank cutter)
7 = Diamond Diameter Cutting length Shank diameter Direction of
rotation
2 = Product line 16 mm 10 mm 16 mm right
„Compactline“
002 = Subline

Example 2: Bullnose cutter R79-006 . 260 . 160 . 200 . 1

R79-006 . 260 . 160 . 200 . 1

R = Router
(Shank cutter)
7 = Diamond Diameter Radius Shank diameter Direction of
rotation
9 = Product line 26 mm 16 mm 20 mm right
„Profileline“
006 = Subline

The AKE shank type cutters are now divided into "product lines"
The product line „Compactline“ contains diamond tools which are preferably suitable for machining
compact, homogeneous materials such as solid core (HPL), solid surface materials as well as MDF and
duroplastic materials.

Under the product line "Profileline" we offer diamond tools that can be used for profiling the workpiece edge
as well as in the workpiece surface.

177
