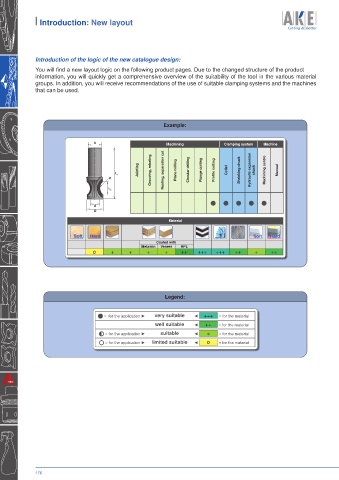

I Introduction: New layout

Introduction of the logic of the new catalogue design:
You will find a new layout logic on the following product pages. Due to the changed structure of the product
information, you will quickly get a comprehensive overview of the suitability of the tool in the various material
groups. In addition, you will receive recommendations of the use of suitable clamping systems and the machines
that can be used.

Example:

S Machining Clamping system Machine

Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
L 1
R
L 2

d
D
Material

Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++

Legend:

= for the application ► very suitable ◄ +++ = for the material
well suitable ◄ ++ = for the material

= for the application ► suitable ◄ + = for the material

= for the application ► limited suitable ◄ o = for the material

176
