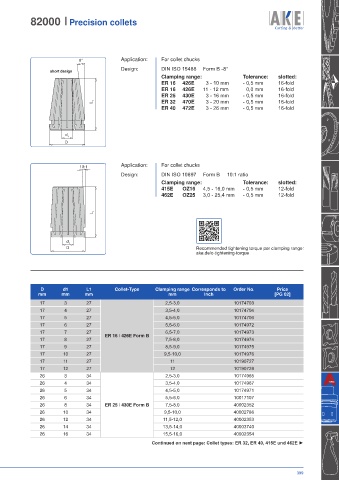

Page 403 - Catalogue_2025+

82000 I Precision collets

8° Application: For collet chucks
Design: DIN ISO 15488 Form B -8°
short design
kurze Bauform
Clamping range: Tolerance: slotted:
ER 16 426E 3 - 10 mm - 0,5 mm 16-fold
ER 16 426E 11 - 12 mm 0,0 mm 16-fold
ER 25 430E 3 - 16 mm - 0,5 mm 16-fold
L 1 ER 32 470E 3 - 20 mm - 0,5 mm 16-fold
ER 40 472E 3 - 26 mm - 0,5 mm 16-fold

d 1
D

10:1 Application: For collet chucks
Design: DIN ISO 10897 Form B 10:1 ratio
Clamping range: Tolerance: slotted:
415E OZ16 4,5 - 16,0 mm - 0,5 mm 12-fold
462E OZ25 3,0 - 25,4 mm - 0,5 mm 12-fold

L 1

d 1
D Recommended tightening torque per clamping range:
ake.de/c-tightening-torque

D d1 L1 Collet-Type Clamping range Corresponds to Order No. Price
mm mm mm mm Inch [PG 02]
17 3 27 2,5-3,0 10174703
17 4 27 3,5-4,0 10174704
17 5 27 4,5-5,0 10174706
17 6 27 5,5-6,0 10174972
17 7 27 ER 16 / 426E Form B 6,5-7,0 10174973
17 8 27 7,5-8,0 10174974
17 9 27 8,5-9,0 10174975
17 10 27 9,5-10,0 10174976
17 11 27 11 10190727
17 12 27 12 10190728
26 3 34 2,5-3,0 10174965
26 4 34 3,5-4,0 10174967
26 5 34 4,5-5,0 10174971
26 6 34 5,5-6,0 10017107
26 8 34 ER 25 / 430E Form B 7,5-8,0 40002352
26 10 34 9,5-10,0 40002786
26 12 34 11,5-12,0 40002353
26 14 34 13,5-14,0 40003740
26 16 34 15,5-16,0 40002354
Continued on next page: Collet types: ER 32, ER 40, 415E und 462E ►

399
