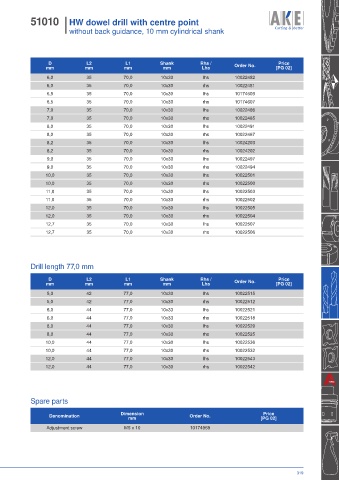

51010 I HW dowel drill with centre point
I without back guidance, 10 mm cylindrical shank

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
6,0 35 70,0 10x30 lhs 10022482
6,0 35 70,0 10x30 rhs 10022481
6,5 35 70,0 10x30 lhs 10174609
6,5 35 70,0 10x30 rhs 10174607
7,0 35 70,0 10x30 lhs 10022486
7,0 35 70,0 10x30 rhs 10022485
8,0 35 70,0 10x30 lhs 10022491
8,0 35 70,0 10x30 rhs 10022487
8,2 35 70,0 10x30 lhs 10024203
8,2 35 70,0 10x30 rhs 10024202
9,0 35 70,0 10x30 lhs 10022497
9,0 35 70,0 10x30 rhs 10022494
10,0 35 70,0 10x30 lhs 10022501
10,0 35 70,0 10x30 rhs 10022500
11,0 35 70,0 10x30 lhs 10022503
11,0 35 70,0 10x30 rhs 10022502
12,0 35 70,0 10x30 lhs 10022505
12,0 35 70,0 10x30 rhs 10022504
12,7 35 70,0 10x30 lhs 10022507
12,7 35 70,0 10x30 rhs 10022506

Drill length 77,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5,0 42 77,0 10x30 lhs 10022515
5,0 42 77,0 10x30 rhs 10022512
6,0 44 77,0 10x33 lhs 10022521
6,0 44 77,0 10x33 rhs 10022518
8,0 44 77,0 10x30 lhs 10022529
8,0 44 77,0 10x30 rhs 10022525
10,0 44 77,0 10x30 lhs 10022536
10,0 44 77,0 10x30 rhs 10022532
12,0 44 77,0 10x30 lhs 10022543
12,0 44 77,0 10x30 rhs 10022542

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Adjustment screw M5 x 10 10174969
