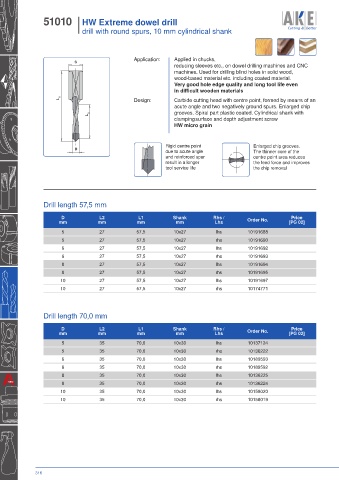

Page 320 - Catalogue_2025+

51010 I HW Extreme dowel drill
I drill with round spurs, 10 mm cylindrical shank

Application: Applied in chucks,
S
reducing sleeves etc., on dowel drilling machines and CNC
machines. Used for drilling blind holes in solid wood,
wood-based material etc. including coated material.
Very good hole edge quality and long tool life even
in difficult wooden materials
L 1 Design: Carbide cutting head with centre point, formed by means of an
acute angle and two negatively ground spurs. Enlarged chip
grooves. Spiral part plastic coated. Cylindrical shank with
L 2
clamping surface and depth adjustment screw
HW micro grain

Rigid centre point Enlarged chip grooves.
D
due to acute angle The thinner core of the
and reinforced spur centre point area reduces
result in a longer the feed force and improves
tool service life the chip removal

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 27 57,5 10x27 lhs 10191688
5 27 57,5 10x27 rhs 10191690
6 27 57,5 10x27 lhs 10191692
6 27 57,5 10x27 rhs 10191693
8 27 57,5 10x27 lhs 10191694
8 27 57,5 10x27 rhs 10191695
10 27 57,5 10x27 lhs 10191697
10 27 57,5 10x27 rhs 10174771

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 35 70,0 10x30 lhs 10137124
5 35 70,0 10x30 rhs 10136222
6 35 70,0 10x30 lhs 10189593
6 35 70,0 10x30 rhs 10189592
8 35 70,0 10x30 lhs 10136225
8 35 70,0 10x30 rhs 10136224
10 35 70,0 10x30 lhs 10158020
10 35 70,0 10x30 rhs 10158019

316
