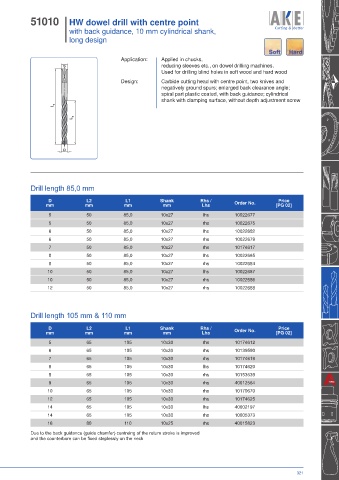

51010 I HW dowel drill with centre point
I with back guidance, 10 mm cylindrical shank,
I long design

Application: Applied in chucks,
S reducing sleeves etc., on dowel drilling machines.
Used for drilling blind holes in soft wood and hard wood
Design: Carbide cutting head with centre point, two knives and
negatively ground spurs; enlarged back clearance angle;
spiral part plastic coated, with back guidance; cylindrical
shank with clamping surface, without depth adjustment screw
L 1
L 2

D

Drill length 85,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 50 85,0 10x27 lhs 10022677
5 50 85,0 10x27 rhs 10022675
6 50 85,0 10x27 lhs 10022682
6 50 85,0 10x27 rhs 10022679
7 50 85,0 10x27 rhs 10174617
8 50 85,0 10x27 lhs 10022685
8 50 85,0 10x27 rhs 10022684
10 50 85,0 10x27 lhs 10022687
10 50 85,0 10x27 rhs 10022686
12 50 85,0 10x27 rhs 10022688

Drill length 105 mm & 110 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 65 105 10x30 rhs 10174612
6 65 105 10x30 rhs 10139590
7 65 105 10x30 rhs 10174619
8 65 105 10x30 lhs 10174620
8 65 105 10x30 rhs 10153639
9 65 105 10x30 rhs 40012564
10 65 105 10x30 rhs 10170670
12 65 105 10x30 rhs 10174625
14 65 105 10x30 lhs 40002197
14 65 105 10x30 rhs 10005373
16 80 110 10x25 rhs 40015823
Due to the back guidance (guide chamfer) centreing of the return stroke is improved
and the counterbore can be fixed steplessly on the neck
