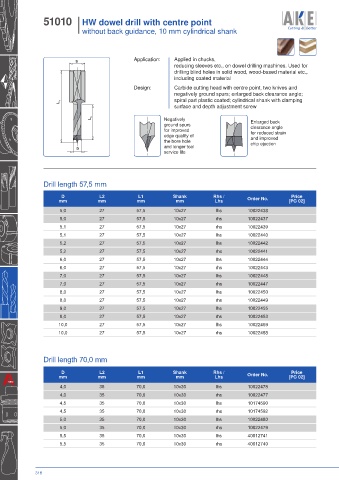

51010 I HW dowel drill with centre point
I without back guidance, 10 mm cylindrical shank

Application: Applied in chucks,
S
reducing sleeves etc., on dowel drilling machines. Used for
drilling blind holes in solid wood, wood-based material etc.,
including coated material
Design: Carbide cutting head with centre point, two knives and
negatively ground spurs; enlarged back clearance angle;
spiral part plastic coated; cylindrical shank with clamping
L 1
surface and depth adjustment screw

L 2 Negatively Enlarged back
ground spurs clearance angle
for improved for reduced strain
edge quality of and improved
the bore hole chip ejection
D and longer tool
service life

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]

5,0 27 57,5 10x27 lhs 10022438
5,0 27 57,5 10x27 rhs 10022437
5,1 27 57,5 10x27 rhs 10022439
5,1 27 57,5 10x27 lhs 10022440
5,2 27 57,5 10x27 lhs 10022442
5,2 27 57,5 10x27 rhs 10022441
6,0 27 57,5 10x27 lhs 10022444
6,0 27 57,5 10x27 rhs 10022443
7,0 27 57,5 10x27 lhs 10022448
7,0 27 57,5 10x27 rhs 10022447
8,0 27 57,5 10x27 lhs 10022450
8,0 27 57,5 10x27 rhs 10022449
9,0 27 57,5 10x27 lhs 10022455
9,0 27 57,5 10x27 rhs 10022453
10,0 27 57,5 10x27 lhs 10022469
10,0 27 57,5 10x27 rhs 10022468

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
4,0 35 70,0 10x30 lhs 10022478
4,0 35 70,0 10x30 rhs 10022477
4,5 35 70,0 10x30 lhs 10174590
4,5 35 70,0 10x30 rhs 10174592
5,0 35 70,0 10x30 lhs 10022480
5,0 35 70,0 10x30 rhs 10022479
5,5 35 70,0 10x30 lhs 40012741
5,5 35 70,0 10x30 rhs 40012740
