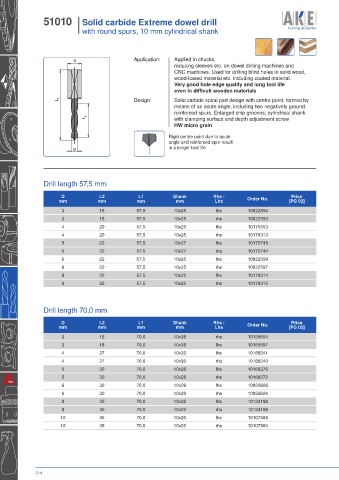

51010 I Solid carbide Extreme dowel drill
I with round spurs, 10 mm cylindrical shank

S Application: Applied in chucks,
reducing sleeves etc. on dowel drilling machines and
CNC machines. Used for drilling blind holes in solid wood,
wood-based material etc. including coated material.
Very good hole edge quality and long tool life
even in difficult wooden materials
L 1 Design: Solid carbide spiral part design with centre point, formed by
means of an acute angle, including two negatively ground,
reinforced spurs. Enlarged chip grooves; cylindrical shank
L 2 with clamping surface and depth adjustment screw
HW micro grain
Rigid centre point due to acute
angle and reinforced spur result
in a longer tool life
D

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]

3 18 57,5 10x25 lhs 10022594
3 18 57,5 10x25 rhs 10022593
4 20 57,5 10x25 lhs 10175553
4 20 57,5 10x25 rhs 10178313
5 22 57,5 10x27 lhs 10175745
5 22 57,5 10x27 rhs 10175744
6 22 57,5 10x25 lhs 10022599
6 22 57,5 10x25 rhs 10022597
8 22 57,5 10x25 lhs 10178314
8 22 57,5 10x25 rhs 10178315

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
3 18 70,0 10x38 rhs 10159604
3 18 70,0 10x38 lhs 10159597
4 27 70,0 10x30 lhs 10188241
4 27 70,0 10x30 rhs 10188240
5 30 70,0 10x28 lhs 10168276
5 30 70,0 10x28 rhs 10168272
6 30 70,0 10x29 lhs 10022606
6 30 70,0 10x29 rhs 10022604
8 35 70,0 10x22 lhs 10134198
8 35 70,0 10x22 rhs 10134199
10 35 70,0 10x20 lhs 10107588
10 35 70,0 10x20 rhs 10107586
