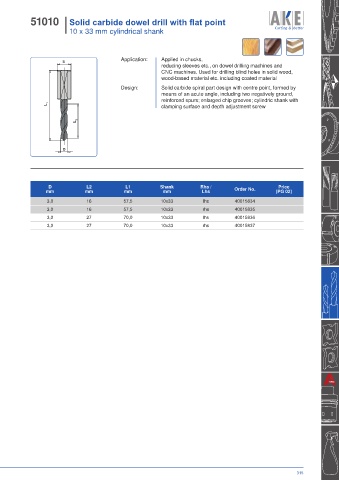

Page 319 - Catalogue_2025+

51010 I Solid carbide Extreme dowel drill 51010 I Solid carbide dowel drill with flat point
I with round spurs, 10 mm cylindrical shank I 10 x 33 mm cylindrical shank

Application: Applied in chucks,
S
reducing sleeves etc., on dowel drilling machines and
CNC machines. Used for drilling blind holes in solid wood,
wood-based material etc. including coated material
Design: Solid carbide spiral part design with centre point, formed by
means of an acute angle, including two negatively ground,
reinforced spurs; enlarged chip grooves; cylindric shank with
L 1 clamping surface and depth adjustment screw

L 2

D

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
3,0 16 57,5 10x33 lhs 40015834
3,0 16 57,5 10x33 rhs 40015835
3,0 27 70,0 10x33 lhs 40015836
3,0 27 70,0 10x33 rhs 40015837

315
