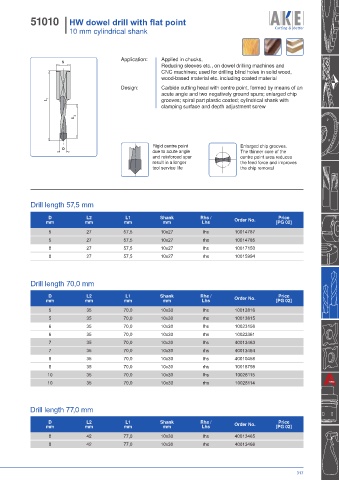

51010 I HW dowel drill with flat point
I 10 mm cylindrical shank

Application: Applied in chucks,
S
Reducing sleeves etc., on dowel drilling machines and
CNC machines; used for drilling blind holes in solid wood,
wood-based material etc. including coated material
Design: Carbide cutting head with centre point, formed by means of an
acute angle and two negatively ground spurs; enlarged chip
L 1 grooves; spiral part plastic coated; cylindrical shank with
clamping surface and depth adjustment screw

L 2

Rigid centre point Enlarged chip grooves.
D
due to acute angle The thinner core of the
and reinforced spur centre point area reduces
result in a longer the feed force and improves
tool service life the chip removal

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 27 57,5 10x27 lhs 10014787
5 27 57,5 10x27 rhs 10014785
8 27 57,5 10x27 lhs 10017150
8 27 57,5 10x27 rhs 10015994

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 35 70,0 10x30 lhs 10013816
5 35 70,0 10x30 rhs 10013815
6 35 70,0 10x30 lhs 10023156
6 35 70,0 10x30 rhs 10023361
7 35 70,0 10x30 lhs 40013463
7 35 70,0 10x30 rhs 40013464
8 35 70,0 10x30 lhs 40010458
8 35 70,0 10x30 rhs 10018798
10 35 70,0 10x30 lhs 10028115
10 35 70,0 10x30 rhs 10028114

Drill length 77,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
8 42 77,0 10x30 lhs 40013465
8 42 77,0 10x30 rhs 40013466
