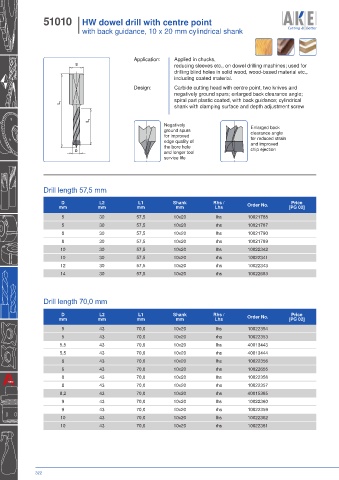

51010 I HW dowel drill with centre point
I with back guidance, 10 x 20 mm cylindrical shank

Application: Applied in chucks,
S reducing sleeves etc., on dowel drilling machines; used for
drilling blind holes in solid wood, wood-based material etc.,
including coated material.
Design: Carbide cutting head with centre point, two knives and
negatively ground spurs; enlarged back clearance angle;
spiral part plastic coated, with back guidance; cylindrical
L 1
shank with clamping surface and depth adjustment screw

L 2
Negatively Enlarged back
ground spurs clearance angle
for improved for reduced strain
edge quality of and improved
the bore hole
D and longer tool chip ejection
service life

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 30 57,5 10x20 lhs 10021788
5 30 57,5 10x20 rhs 10021787
8 30 57,5 10x20 lhs 10021790
8 30 57,5 10x20 rhs 10021789
10 30 57,5 10x20 lhs 10022342
10 30 57,5 10x20 rhs 10022341
12 30 57,5 10x20 rhs 10022343
14 30 57,5 10x20 rhs 10022653

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5 43 70,0 10x20 lhs 10022354
5 43 70,0 10x20 rhs 10022353
5,5 43 70,0 10x20 lhs 40013443
5,5 43 70,0 10x20 rhs 40013444
6 43 70,0 10x20 lhs 10022356
6 43 70,0 10x20 rhs 10022655
8 43 70,0 10x20 lhs 10022358
8 43 70,0 10x20 rhs 10022357
8,2 43 70,0 10x20 rhs 40015385
9 43 70,0 10x20 lhs 10022360
9 43 70,0 10x20 rhs 10022359
10 43 70,0 10x20 lhs 10022362
10 43 70,0 10x20 rhs 10022361
