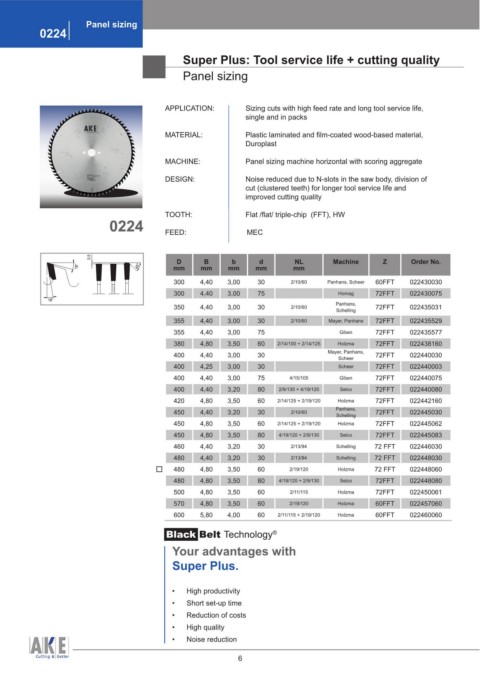

Page 6 - Furniture production_EN_2015

Panel sizing
0224

Super Plus: Tool service life + cutting quality
Panel sizing

APPLICATION: Sizing cuts with high feed rate and long tool service life,
single and in packs

MATERIAL: Plastic laminated and film-coated wood-based material,
Duroplast
MACHINE: Panel sizing machine horizontal with scoring aggregate

DESIGN: Noise reduced due to N-slots in the saw body, division of
cut (clustered teeth) for longer tool service life and
improved cutting quality
TOOTH: Flat /flat/ triple-chip (FFT), HW
0224 FEED: MEC

0,5 D B b d NL Machine Z Order No.
18° 45° mm mm mm mm mm
300 4,40 3,00 30 2/10/60 Panhans, Scheer 60FFT 022430030
300 4,40 3,00 75 Homag 72FFT 022430075
18°
350 4,40 3,00 30 2/10/60 Panhans, 72FFT 022435031
Schelling
355 4,40 3,00 30 2/10/60 Mayer, Panhans 72FFT 022435529
355 4,40 3,00 75 Giben 72FFT 022435577
380 4,80 3,50 60 2/14/100 + 2/14/125 Holzma 72FFT 022438160
400 4,40 3,00 30 Mayer, Panhans, 72FFT 022440030
Scheer
400 4,25 3,00 30 Scheer 72FFT 022440003
400 4,40 3,00 75 4/15/105 Giben 72FFT 022440075
400 4,40 3,20 80 2/9/130 + 4/19/120 Selco 72FFT 022440080
420 4,80 3,50 60 2/14/125 + 2/19/120 Holzma 72FFT 022442160
450 4,40 3,20 30 2/10/60 Panhans, 72FFT 022445030
Schelling
450 4,80 3,50 60 2/14/125 + 2/19/120 Holzma 72FFT 022445062
450 4,80 3,50 80 4/19/120 + 2/9/130 Selco 72FFT 022445083
460 4,40 3,20 30 2/13/94 Schelling 72 FFT 022446030
480 4,40 3,20 30 2/13/94 Schelling 72 FFT 022448030
480 4,80 3,50 60 2/19/120 Holzma 72 FFT 022448060
480 4,80 3,50 80 4/19/120 + 2/9/130 Selco 72FFT 022448080
500 4,80 3,50 60 2/11/115 Holzma 72FFT 022450061
570 4,80 3,50 60 2/19/120 Holzma 60FFT 022457060
600 5,80 4,00 60 2/11/115 + 2/19/120 Holzma 60FFT 022460060

Black Belt Technology ®
Your advantages with
Super Plus.

• High productivity
• Short set-up time
• Reduction of costs
• High quality
• Noise reduction
