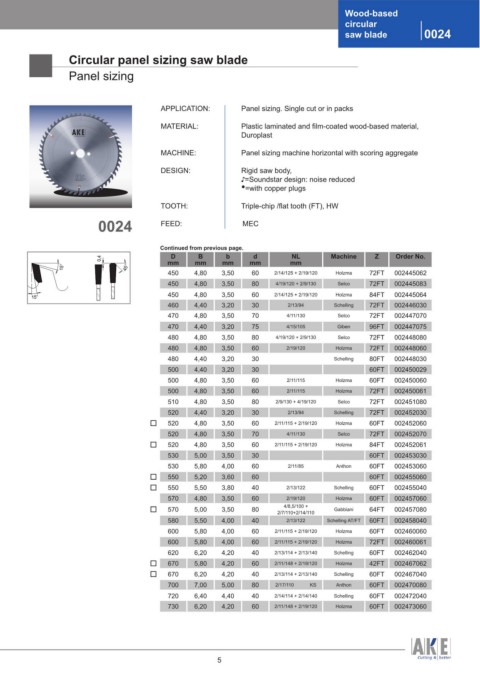

P. 5
Wood-based
circular
saw blade 0024
Circular panel sizing saw blade
Panel sizing
APPLICATION: Panel sizing. Single cut or in packs
MATERIAL: Plastic laminated and film-coated wood-based material,
Duroplast
MACHINE: Panel sizing machine horizontal with scoring aggregate
DESIGN: Rigid saw body,
♪=Soundstar design: noise reduced
•=with copper plugs
TOOTH: Triple-chip /flat tooth (FT), HW
0024 FEED: MEC
Continued from previous page.
D B b d NL Machine Z Order No.
0,4 mm mm mm mm mm
15° 45°
450 4,80 3,50 60 2/14/125 + 2/19/120 Holzma 72FT 002445062
450 4,80 3,50 80 4/19/120 + 2/9/130 Selco 72FT 002445083
15° 450 4,80 3,50 60 2/14/125 + 2/19/120 Holzma 84FT 002445064
460 4,40 3,20 30 2/13/94 Schelling 72FT 002446030
470 4,80 3,50 70 4/11/130 Selco 72FT 002447070
470 4,40 3,20 75 4/15/105 Giben 96FT 002447075
480 4,80 3,50 80 4/19/120 + 2/9/130 Selco 72FT 002448080
480 4,80 3,50 60 2/19/120 Holzma 72FT 002448060
480 4,40 3,20 30 Schelling 80FT 002448030
500 4,40 3,20 30 60FT 002450029
500 4,80 3,50 60 2/11/115 Holzma 60FT 002450060
500 4,80 3,50 60 2/11/115 Holzma 72FT 002450061
510 4,80 3,50 80 2/9/130 + 4/19/120 Selco 72FT 002451080
520 4,40 3,20 30 2/13/94 Schelling 72FT 002452030
520 4,80 3,50 60 2/11/115 + 2/19/120 Holzma 60FT 002452060
520 4,80 3,50 70 4/11/130 Selco 72FT 002452070
520 4,80 3,50 60 2/11/115 + 2/19/120 Holzma 84FT 002452061
530 5,00 3,50 30 60FT 002453030
530 5,80 4,00 60 2/11/85 Anthon 60FT 002453060
550 5,20 3,60 60 60FT 002455060
550 5,50 3,80 40 2/13/122 Schelling 60FT 002455040
570 4,80 3,50 60 2/19/120 Holzma 60FT 002457060
4/8,5/100 +
570 5,00 3,50 80 2/7/110+2/14/110 Gabbiani 64FT 002457080
580 5,50 4,00 40 2/13/122 Schelling AT/FT 60FT 002458040
600 5,80 4,00 60 2/11/115 + 2/19/120 Holzma 60FT 002460060
600 5,80 4,00 60 2/11/115 + 2/19/120 Holzma 72FT 002460061
620 6,20 4,20 40 2/13/114 + 2/13/140 Schelling 60FT 002462040
670 5,80 4,20 60 2/11/148 + 2/19/120 Holzma 42FT 002467062
670 6,20 4,20 40 2/13/114 + 2/13/140 Schelling 60FT 002467040
700 7,00 5,00 80 2/17/110 KS Anthon 60FT 002470080
720 6,40 4,40 40 2/14/114 + 2/14/140 Schelling 60FT 002472040
730 6,20 4,20 60 2/11/148 + 2/19/120 Holzma 60FT 002473060
5
