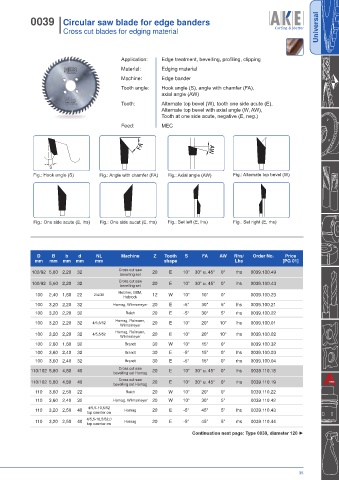

0039 I Circular saw blade for edge banders
I Cross cut blades for edging material Universal

Application: Edge treatment, bevelling, profiling, clipping
Material: Edging material
Machine: Edge bander
Tooth angle: Hook angle (S), angle with chamfer (FA),
axial angle (AW)
Tooth: Alternate top bevel (W), tooth one side acute (E),
Alternate top bevel with axial angle (W, AW),
Tooth at one side acute, negative (E, neg.)
Feed: MEC

FA AW

S
Fig.: Hook angle (S) Fig.: Angle with chamfer (FA) Fig.: Axial angle (AW) Fig.: Alternate top bevel (W)

Fig.: One side acute (E, lhs) Fig.: One side aucut (E, rhs) Fig.: Set left (E, lhs) Fig.: Set right (E, rhs)

D B b d NL Machine Z Tooth S FA AW Rhs/ Order No. Price
mm mm mm mm mm shape Lhs [PG 01]

100/92 5,60 2,20 32 Cross cut saw 20 E 10° 30° u. 45° 0° rhs 0039.100.49
bevelling set
100/92 5,60 2,20 32 Cross cut saw 20 E 10° 30° u. 45° 0° lhs 0039.100.43
bevelling set
100 2,40 1,60 22 2/4/30 Holzher, EBM, 12 W 10° 10° 0° 0039.100.23
Hebrock
100 3,20 2,20 32 Homag, Wilmsmeyer 20 E -5° 30° 5° lhs 0039.100.21
100 3,20 2,20 32 Reich 20 E -5° 30° 5° rhs 0039.100.22
100 3,20 2,20 32 4/5,5/52 Homag, Raimann, 20 E 10° 20° 10° lhs 0039.100.01
Wilmsmeyer
100 3,20 2,20 32 4/5,5/52 Homag, Raimann, 20 E 10° 20° 10° rhs 0039.100.02
Wilmsmeyer
100 2,60 1,60 32 Brandt 30 W 10° 15° 0° 0039.100.32
100 3,60 2,40 32 Brandt 30 E -5° 15° 0° lhs 0039.100.03
100 3,60 2,40 32 Brandt 30 E -5° 15° 0° rhs 0039.100.04
Cross cut saw
110/102 5,80 4,80 40 bevelling set Homag 20 E 10° 30° u. 45° 0° lhs 0039.110.18
Cross cut saw
110/102 5,80 4,80 40 bevelling set Homag 20 E 10° 30° u. 45° 0° rhs 0039.110.19
110 3,60 2,50 22 Reich 20 W 10° 20° 0° 0039.110.22
110 3,60 2,40 32 Homag, Wilmsmeyer 20 W 10° 30° 5° 0039.110.42
110 3,20 2,50 40 4/5,5-10,5/52 Homag 20 E -5° 45° 5° lhs 0039.110.43
top counter cw
110 3,20 2,50 40 4/5,5-10,5/52,0 Homag 20 E -5° 45° 5° rhs 0039.110.44
top counter cw
Continuation next page: Type 0039, diameter 120 ►
