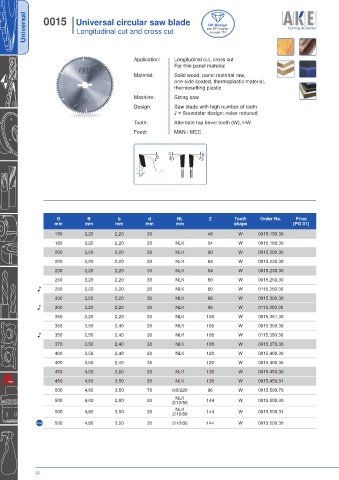

Universal 0015 I Universal circular saw blade see DP-chapter
DP-Design

I Longitudinal cut and cross cut
on page 157

Application: Longitudinal cut, cross cut
For thin panel material
Material: Solid wood, panel material raw,
one-side coated, thermoplastic material,
thermosetting plastic
Machine: Sizing saw

Design: Saw blade with high number of teeth
♪ = Soundstar design: noise reduced
Tooth: Alternate top bevel tooth (W), HW
Feed: MAN / MEC

15°/20°
15°
15°/20°

10°

D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]

150 3,20 2,20 30 48 W 0015.150.30
180 3,20 2,20 30 NLK 54 W 0015.180.30
200 3,20 2,20 30 NLK 60 W 0015.200.30
220 3,20 2,20 30 NLK 64 W 0015.220.30
230 3,20 2,20 30 NLK 64 W 0015.230.30
250 3,20 2,20 30 NLK 80 W 0015.250.30
♪ 250 3,20 2,20 30 NLK 80 W 0115.250.30

300 3,20 2,20 30 NLK 96 W 0015.300.30
♪ 300 3,20 2,20 30 NLK 96 W 0115.300.30

350 3,20 2,20 30 NLK 108 W 0015.351.30
350 3,50 2,40 30 NLK 108 W 0015.350.30
♪ 350 3,50 2,40 30 NLK 108 W 0115.350.30

370 3,50 2,40 30 NLK 108 W 0015.370.30
400 3,50 2,40 30 NLK 120 W 0015.400.30
400 3,50 2,40 35 120 W 0015.400.35
450 4,00 2,80 30 NLK 138 W 0015.450.30
450 4,80 3,50 30 NLK 138 W 0015.450.31
500 4,80 3,50 70 6/8/220 96 W 0015.500.70
NLK
500 4,00 2,80 30 2/10/80 144 W 0015.500.30
NLK
500 4,80 3,50 30 2/10/80 144 W 0015.500.31
new 500 4,80 3,50 35 2/10/60 144 W 0015.500.35

32
