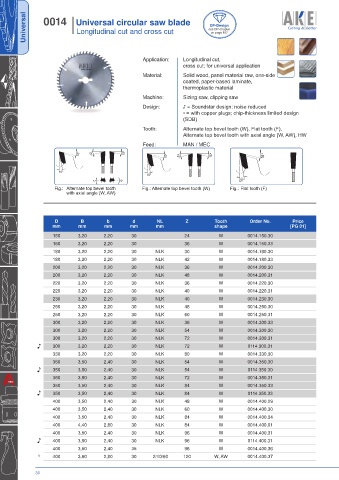

Page 34 - Catalogue_2025+

Universal 0014 I Universal circular saw blade see DP-chapter
DP-Design

I Longitudinal cut and cross cut
on page 157

Application: Longitudinal cut,
cross cut; for universal application
Material: Solid wood, panel material raw, one-side
coated, paper-based laminate,
thermoplastic material
Machine: Sizing saw, clipping saw

Design: ♪ = Soundstar design: noise reduced
• = with copper plugs; chip-thickness limited design
(SDB)

Tooth: Alternate top bevel tooth (W), Flat tooth (F),
Alternate top bevel tooth with axial angle (W, AW), HW
Feed: MAN / MEC
12° 15° 15° 15° 15° 15° 15°

10°
10°
5° 5° 20°
Fig.: Alternate top bevel tooth Fig.: Alternate top bevel tooth (W) Fig.: Flat tooth (F)
with axial angle (W, AW)

D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
150 3,20 2,20 30 24 W 0014.150.30
150 3,20 2,20 30 36 W 0014.150.33
180 3,20 2,20 30 NLK 30 W 0014.180.30
180 3,20 2,20 30 NLK 42 W 0014.180.33
200 3,20 2,20 30 NLK 36 W 0014.200.30
200 3,20 2,20 30 NLK 48 W 0014.200.31
220 3,20 2,20 30 NLK 36 W 0014.220.30
220 3,20 2,20 30 NLK 40 W 0014.220.31
230 3,20 2,20 30 NLK 40 W 0014.230.30
250 3,20 2,20 30 NLK 48 W 0014.250.30
250 3,20 2,20 30 NLK 60 W 0014.250.31
300 3,20 2,20 30 NLK 36 W 0014.300.33
300 3,20 2,20 30 NLK 54 W 0014.300.30
300 3,20 2,20 30 NLK 72 W 0014.300.31
♪ 300 3,20 2,20 30 NLK 72 W 0114.300.31
330 3,20 2,20 30 NLK 80 W 0014.330.30
350 3,50 2,40 30 NLK 54 W 0014.350.30
♪ 350 3,50 2,40 30 NLK 54 W 0114.350.30
350 3,50 2,40 30 NLK 72 W 0014.350.31
350 3,50 2,40 30 NLK 84 W 0014.350.33
♪ 350 3,50 2,40 30 NLK 84 W 0114.350.33
400 3,50 2,40 30 NLK 48 W 0014.400.29
400 3,50 2,40 30 NLK 60 W 0014.400.30
400 3,50 2,40 30 NLK 84 W 0014.400.34
400 4,40 2,80 30 NLK 84 W 0014.400.01
400 3,50 2,40 30 NLK 96 W 0014.400.31
♪ 400 3,50 2,40 30 NLK 96 W 0114.400.31
400 3,50 2,40 35 96 W 0014.400.36
1) 400 3,60 2,80 30 2/10/60 120 W, AW 0014.400.37

30
