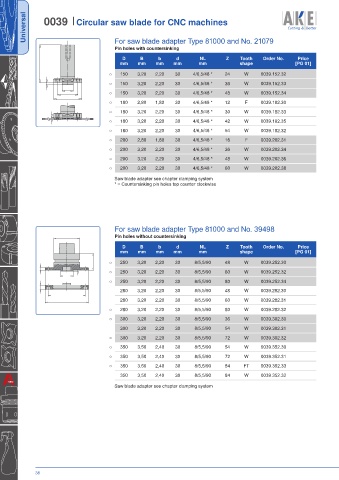

Universal 0039 I Circular saw blade for CNC machines

For saw blade adapter Type 81000 and No. 21079
Pin holes with countersinking
D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]

○ 150 3,20 2,20 30 4/6,5/48 * 24 W 0039.152.32
○ 150 3,20 2,20 30 4/6,5/48 * 36 W 0039.152.33
○ 150 3,20 2,20 30 4/6,5/48 * 48 W 0039.152.34
○ 180 2,80 1,80 30 4/6,5/48 * 12 F 0039.182.30
○ 180 3,20 2,20 30 4/6,5/48 * 30 W 0039.182.33
○ 180 3,20 2,20 30 4/6,5/48 * 42 W 0039.182.35
○ 180 3,20 2,20 30 4/6,5/48 * 54 W 0039.182.32
○ 200 2,80 1,80 30 4/6,5/48 * 16 F 0039.202.31
○ 200 3,20 2,20 30 4/6,5/48 * 36 W 0039.202.34
○ 200 3,20 2,20 30 4/6,5/48 * 48 W 0039.202.36
○ 200 3,20 2,20 30 4/6,5/48 * 60 W 0039.202.38
Saw blade adapter see chapter clamping system
* = Countersinking pin holes top counter clockwise

For saw blade adapter Type 81000 and No. 39498
Pin holes without countersinking
D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]

○ 250 3,20 2,20 30 8/5,5/90 48 W 0039.252.30
○ 250 3,20 2,20 30 8/5,5/90 60 W 0039.252.32
○ 250 3,20 2,20 30 8/5,5/90 80 W 0039.252.34
280 3,20 2,20 30 8/5,5/90 48 W 0039.282.30
280 3,20 2,20 30 8/5,5/90 60 W 0039.282.31
○ 280 3,20 2,20 30 8/5,5/90 80 W 0039.282.32
○ 300 3,20 2,20 30 8/5,5/90 36 W 0039.302.30
300 3,20 2,20 30 8/5,5/90 54 W 0039.302.31
○ 300 3,20 2,20 30 8/5,5/90 72 W 0039.302.32
○ 350 3,50 2,40 30 8/5,5/90 54 W 0039.352.30

○ 350 3,50 2,40 30 8/5,5/90 72 W 0039.352.31
○ 350 3,50 2,40 30 8/5,5/90 84 FT 0039.352.33
350 3,50 2,40 30 8/5,5/90 84 W 0039.352.32
Saw blade adapter see chapter clamping system
