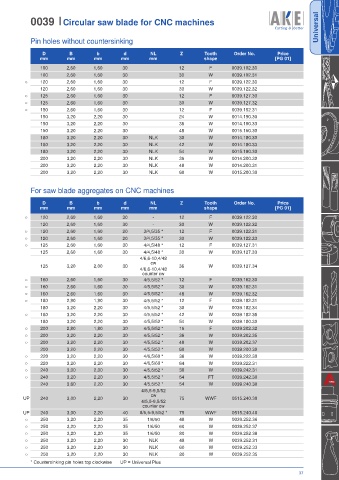

Page 41 - Catalogue_2025+

0039 I Circular saw blade for CNC machines Universal

Pin holes without countersinking

D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
100 2,60 1,60 30 12 F 0039.102.30
100 2,60 1,60 30 30 W 0039.102.31
○ 120 2,60 1,60 30 12 F 0039.122.30
120 2,60 1,60 30 30 W 0039.122.32
○ 125 2,60 1,60 30 12 F 0039.127.30
○ 125 2,60 1,60 30 30 W 0039.127.32
○ 150 2,60 1,60 30 12 F 0039.152.31
150 3,20 2,20 30 24 W 0014.150.30
150 3,20 2,20 30 36 W 0014.150.33
150 3,20 2,20 30 48 W 0015.150.30
180 3,20 2,20 30 NLK 30 W 0014.180.30
180 3,20 2,20 30 NLK 42 W 0014.180.33
180 3,20 2,20 30 NLK 54 W 0015.180.30
200 3,20 2,20 30 NLK 36 W 0014.200.30
200 3,20 2,20 30 NLK 48 W 0014.200.31
200 3,20 2,20 30 NLK 60 W 0015.200.30

For saw blade aggregates on CNC machines

D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
○ 120 2,60 1,60 30 - 12 F 0039.122.30
120 2,60 1,60 30 - 30 W 0039.122.32
○ 120 2,60 1,60 20 3/4,5/35 * 12 F 0039.122.31
○ 120 2,60 1,60 20 3/4,5/35 * 30 W 0039.122.33
○ 125 2,60 1,60 30 4/4,5/48 * 12 F 0039.127.31
125 2,60 1,60 30 4/4,5/48 * 30 W 0039.127.33
4/6,6-10,4/48
125 3,20 2,00 30 cw 36 W 0039.127.34
4/6,6-10,4/48
counter cw
○ 160 2,60 1,60 30 4/5,5/52 * 12 F 0039.162.30
○ 160 2,60 1,60 30 4/5,5/52 * 30 W 0039.162.31
○ 160 2,60 1,60 30 4/5,5/52 * 48 W 0039.162.32
○ 180 2,80 1,80 30 4/5,5/52 * 12 F 0039.182.31
180 3,20 2,20 30 4/5,5/52 * 30 W 0039.182.34
○ 180 3,20 2,20 30 4/5,5/52 * 42 W 0039.182.36
180 3,20 2,20 30 4/5,5/52 * 54 W 0039.180.30
○ 200 2,80 1,80 30 4/5,5/52 * 16 F 0039.202.32
○ 200 3,20 2,20 30 4/5,5/52 * 36 W 0039.202.35
○ 200 3,20 2,20 30 4/5,5/52 * 48 W 0039.202.37
200 3,20 2,20 30 4/5,5/52 * 60 W 0039.200.30
○ 220 3,20 2,20 30 4/6,5/60 * 36 W 0039.222.30
○ 220 3,20 2,20 30 4/6,5/60 * 64 W 0039.222.31
○ 240 3,00 2,00 30 4/5,5/52 * 30 W 0039.242.31
○ 240 3,20 2,20 30 4/5,5/52 * 54 FT 0039.242.30
240 3,60 2,20 30 4/5,5/52 * 54 W 0039.240.30
4/5,5-9,5/52
UP 240 3,00 2,20 30 cw 75 WWF 0515.240.30
4/5,5-9,5/52
counter cw
UP 240 3,00 2,20 40 8/5,5-9,5/52 * 75 WWF 0515.240.40
○ 250 3,20 2,20 35 1/6/50 48 W 0039.252.36
○ 250 3,20 2,20 35 1/6/50 60 W 0039.252.37
○ 250 3,20 2,20 35 1/6/50 80 W 0039.252.38
○ 250 3,20 2,20 30 NLK 48 W 0039.252.31
○ 250 3,20 2,20 30 NLK 60 W 0039.252.33
○ 250 3,20 2,20 30 NLK 80 W 0039.252.35
* Countersinking pin holes top clockwise UP = Universal Plus
