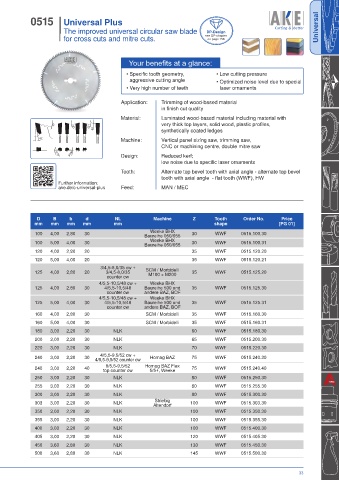

Page 37 - Catalogue_2025+

0515 I Universal Plus
I The improved universal circular saw blade DP-Design Universal
for cross cuts and mitre cuts. see DP-chapter
on page 158

Your benefits at a glance:
• Specific tooth geometry, • Low cutting pressure
aggressive cutting angle • Optimized noise level due to special
• Very high number of teeth laser ornaments

Application: Trimming of wood-based material
in finish cut quality
Material: Laminated wood-based material including material with
15° 15° 15° very thick top layers, solid wood, plastic profiles,
0.2 synthetically coated ledges

15° Machine: Vertical panel sizing saw, trimming saw,
CNC or machining centre, double mitre saw
8°/10° Design: Reduced kerf;
8°/10°
low noise due to specific laser ornaments
Tooth: Alternate top bevel tooth with axial angle - alternate top bevel
tooth with axial angle - flat tooth (WWF), HW
Further information:
ake.de/c-universal-plus Feed: MAN / MEC

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
Weeke BHX
100 4,00 2,80 30 Baureihe 050/055 30 WWF 0515.100.30
Weeke BHX
100 5,00 4,00 30 Baureihe 050/055 30 WWF 0515.100.31
120 4,00 2,80 20 35 WWF 0515.120.20
120 5,00 4,00 20 35 WWF 0515.120.21
3/4,5-8,0/35 cw +
125 4,00 2,80 20 3/4,5-8,0/35 SCM / Morbidelli 35 WWF 0515.125.20
M100 + M200
counter cw
4/5,5-10,5/48 cw + Weeke BHX
125 4,00 2,80 30 4/5,5-10,5/48 Baureihe 500 und 35 WWF 0515.125.30
counter cw andere BAZ, BOF
4/5,5-10,5/48 cw + Weeke BHX
125 5,00 4,00 30 4/5,5-10,5/48 Baureihe 500 und 35 WWF 0515.125.31
counter cw andere BAZ, BOF
160 4,00 2,80 30 SCM / Morbidelli 35 WWF 0515.160.30
160 5,00 4,00 30 SCM / Morbidelli 35 WWF 0515.160.31
180 3,00 2,20 30 NLK 60 WWF 0515.180.30
200 3,00 2,20 30 NLK 65 WWF 0515.200.30
220 3,00 2,20 30 NLK 70 WWF 0515.220.30
4/5,5-9,5/52 cw +
240 3,00 2,20 30 4/5,5-9,5/52 counter cw Homag BAZ 75 WWF 0515.240.30
8/5,5-9,5/52
240 3,00 2,20 40 top counter cw Homag BAZ Flex 75 WWF 0515.240.40
5/5+, Weeke
250 3,00 2,20 30 NLK 80 WWF 0515.250.30
255 3,00 2,20 30 NLK 80 WWF 0515.255.30
300 3,00 2,20 30 NLK 80 WWF 0515.300.30
Striebig
303 3,00 2,20 30 NLK Altendorf 100 WWF 0515.303.30
350 3,00 2,20 30 NLK 100 WWF 0515.350.30
355 3,00 2,20 30 NLK 100 WWF 0515.355.30
400 3,00 2,20 30 NLK 100 WWF 0515.400.30
405 3,00 2,20 30 NLK 120 WWF 0515.405.30
450 3,60 2,80 30 NLK 130 WWF 0515.450.30
500 3,60 2,80 30 NLK 145 WWF 0515.500.30

33
