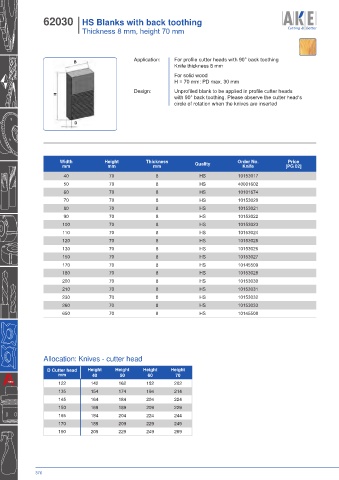

62030 I HS Blanks with back toothing
I Thickness 8 mm, height 70 mm

Application: For profile cutter heads with 90° back toothing
B
Knife thickness 8 mm
For solid wood
H = 70 mm: PD max. 30 mm
Design: Unprofiled blank to be applied in profile cutter heads
H
with 90° back toothing. Please observe the cutter head‘s
circle of rotation when the knives are inserted

D

Width Height Thickness Quality Order No. Price
mm mm mm Knife [PG 02]
40 70 8 HS 10153017
50 70 8 HS 40001602
60 70 8 HS 10101674
70 70 8 HS 10153020
80 70 8 HS 10153021
90 70 8 HS 10153022
100 70 8 HS 10153023
110 70 8 HS 10153024
120 70 8 HS 10153025
130 70 8 HS 10153026
150 70 8 HS 10153027
170 70 8 HS 10145509
180 70 8 HS 10153028
200 70 8 HS 10153030
210 70 8 HS 10153031
230 70 8 HS 10153032
260 70 8 HS 10153033
650 70 8 HS 10145508

Allocation: Knives - cutter head
D Cutter head Height Height Height Height
mm 40 50 60 70
122 142 162 182 202
135 154 174 194 214
145 164 184 204 224
150 169 189 209 229
165 184 204 224 244
170 189 209 229 249
190 209 229 249 269

376
