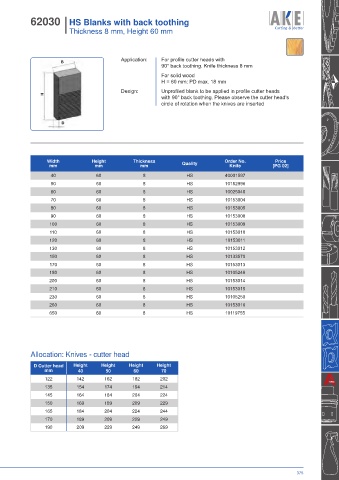

62030 I HS Blanks with back toothing
I Thickness 8 mm, Height 60 mm

Application: For profile cutter heads with
B
90° back toothing. Knife thickness 8 mm
For solid wood
H = 60 mm: PD max. 18 mm
Design: Unprofiled blank to be applied in profile cutter heads
H
with 90° back toothing. Please observe the cutter head‘s
circle of rotation when the knives are inserted

D

Width Height Thickness Quality Order No. Price
mm mm mm Knife [PG 02]
40 60 8 HS 40001597
50 60 8 HS 10152996
60 60 8 HS 10025040
70 60 8 HS 10153004
80 60 8 HS 10153005
90 60 8 HS 10153008
100 60 8 HS 10153009
110 60 8 HS 10153010
120 60 8 HS 10153011
130 60 8 HS 10153012
150 60 8 HS 10133570
170 60 8 HS 10153013
180 60 8 HS 10105248
200 60 8 HS 10153014
210 60 8 HS 10153015
230 60 8 HS 10105250
260 60 8 HS 10153016
650 60 8 HS 10119755

Allocation: Knives - cutter head

D Cutter head Height Height Height Height
mm 40 50 60 70
122 142 162 182 202
135 154 174 194 214
145 164 184 204 224
150 169 189 209 229
165 184 204 224 244
170 189 209 229 249
190 209 229 249 269
