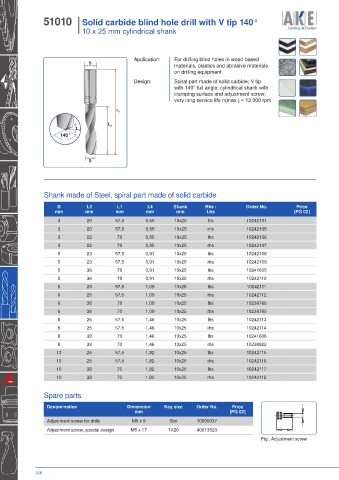

51010 I Solid carbide blind hole drill with V tip 140°
I 10 x 25 mm cylindrical shank

Application: For drilling blind holes in wood-based
S
materials, plastics and abrasive materials
on drilling equipment
Design: Spiral part made of solid carbide; V tip
with 140° full angle; cylindrical shank with
clamping surface and adjustment screw;
very long service life n(max.) = 12.000 rpm

L
1
L 2
L 4
140°

D

Shank made of Steel, spiral part made of solid carbide

D L2 L1 L4 Shank Rhs / Order No. Price
mm mm mm mm mm Lhs [PG 02]
3 20 57,5 0,55 10x25 lhs 10242101
3 20 57,5 0,55 10x25 rhs 10242105
3 22 70 0,55 10x25 lhs 10242106
3 22 70 0,55 10x25 rhs 10242107
5 23 57,5 0,91 10x25 lhs 10242108
5 23 57,5 0,91 10x25 rhs 10242109
5 36 70 0,91 10x25 lhs 10241605
5 36 70 0,91 10x25 rhs 10242110
6 25 57,5 1,09 10x25 lhs 10242111
6 25 57,5 1,09 10x25 rhs 10242112
6 38 70 1,09 10x25 lhs 10238786
6 38 70 1,09 10x25 rhs 10238785
8 25 57,5 1,46 10x25 lhs 10242113
8 25 57,5 1,46 10x25 rhs 10242114
8 38 70 1,46 10x25 lhs 10241606
8 38 70 1,46 10x25 rhs 10238922
10 25 57,5 1,82 10x25 lhs 10242115
10 25 57,5 1,82 10x25 rhs 10242116
10 38 70 1,82 10x25 lhs 10242117
10 38 70 1,82 10x25 rhs 10242118

Spare parts
Denomination Dimension Key size Order No. Price
mm [PG 02]
Adjustment screw for drills M5 x 8 Slot 10006037
Adjustment screw, special design M5 x 17 TX20 40013523
Fig.: Adjustment screw
