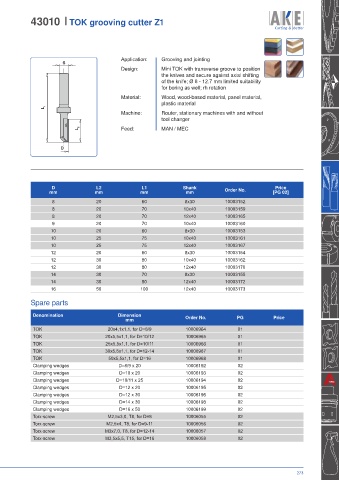

43010 I TOK grooving cutter Z1

Application: Grooving Application: Grooving and jointing
S
Design: Solid carbide tool body with boring tip, Design: Mini TOK with transverse groove to position
rh rotation, full-lenght cylindrical the knives and secure against axial shifting
of the knife; Ø 8 - 12.7 mm limited suitability
Material: Particularly suitable for plastic material for boring as well; rh rotation
and aluminium; suitable for wood-based
material Material: Wood, wood-based material, panel material,
plastic material
Machine: Stationary machines with and without L 1
tool changer, router Machine: Router, stationary machines with and without
tool changer
Feed: MAN / MEC
L 2 Feed: MAN / MEC

D

D L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]
8 20 60 8x30 10003152
8 20 70 10x40 10003159
8 20 70 12x40 10003165
9 20 70 10x40 10003160
10 20 60 8x30 10003153
10 25 75 10x40 10003161
10 25 75 12x40 10003167
12 20 60 8x30 10003154
12 30 80 10x40 10003162
12 30 80 12x40 10003170
14 30 70 8x30 10003155
14 30 80 12x40 10003172
16 50 100 12x40 10003173
Spare parts

Denomination Dimension Order No. PG Price
mm

TOK 20x4,1x1,1, for D=8/9 10006964 01
TOK 20x5,5x1,1, for D=10/12 10006965 01
TOK 25x5,5x1,1, for D=10/11 10006966 01
TOK 30x5,5x1,1, for D=12-14 10006967 01
TOK 50x5,5x1,1, for D=16 10006968 01
Clamping wedges D=8/9 x 20 10006192 02
Clamping wedges D=10 x 20 10006193 02
Clamping wedges D=10/11 x 25 10006194 02
Clamping wedges D=12 x 20 10006195 02
Clamping wedges D=12 x 30 10006196 02
Clamping wedges D=14 x 30 10006198 02
Clamping wedges D=16 x 50 10006199 02
Torx-screw M2,5x3,0, T8, for D=8 10006055 02
Torx-screw M2,5x4, T8, for D=9-11 10006056 02
Torx-screw M3x7,0, T8, for D=12-14 10006057 02
Torx-screw M3,5x5,5, T15, for D=16 10006058 02

273
