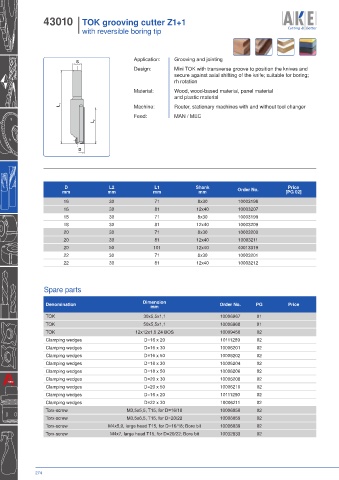

43010 I TOK grooving cutter Z1+1
I with reversible boring tip

Application: Grooving and jointing
S
Design: Mini TOK with transverse groove to position the knives and
secure against axial shifting of the knife; suitable for boring;
rh rotation
Material: Wood, wood-based material, panel material
and plastic material

L 1 Machine: Router, stationary machines with and without tool changer
Feed: MAN / MEC
L 2

D

D L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]

16 30 71 8x30 10003198
16 30 81 12x40 10003207
18 30 71 8x30 10003199
18 30 81 12x40 10003209
20 30 71 8x30 10003200
20 30 81 12x40 10003211
20 50 101 12x40 40013319
22 30 71 8x30 10003201
22 30 81 12x40 10003212

Spare parts

Denomination Dimension Order No. PG Price
mm
TOK 30x5,5x1,1 10006967 01
TOK 50x5,5x1,1 10006968 01
TOK 12x12x1,5 Z4 BOS 10009450 02
Clamping wedges D=16 x 20 10111289 02
Clamping wedges D=16 x 30 10006201 02
Clamping wedges D=16 x 50 10006202 02
Clamping wedges D=18 x 30 10006204 02
Clamping wedges D=18 x 50 10006206 02
Clamping wedges D=20 x 30 10006208 02
Clamping wedges D=20 x 50 10006210 02
Clamping wedges D=16 x 20 10111290 02
Clamping wedges D=22 x 30 10006211 02
Torx-screw M3,5x5,5, T15, for D=16/18 10006058 02
Torx-screw M3,5x6,5, T15, for D=20/22 10006059 02
Torx-screw M4x5,9, large head T15, for D=16/18; Bore bit 10006039 02
Torx-screw M4x7, large head T15, for D=20/22; Bore bit 10032833 02

274
