P. 268

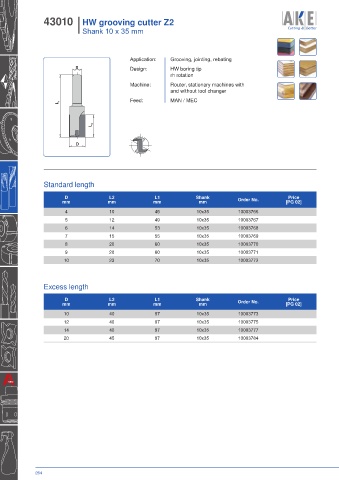

43010 I HW grooving cutter Z2
I Shank 10 x 35 mm
Application: Grooving, jointing, rebating
S Design: HW boring tip
rh rotation
Machine: Router, stationary machines with
and without tool changer
Feed: MAN / MEC
L 1
L 2
D
Standard length
D L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]
4 10 49 10x35 10003766
5 12 49 10x35 10003767
6 14 53 10x35 10003768
7 15 55 10x35 10003769
8 20 60 10x35 10003770
9 20 60 10x35 10003771
10 23 70 10x35 10003772
Excess length
D L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]
10 40 97 10x35 10003773
12 40 97 10x35 10003775
14 40 97 10x35 10003777
20 45 97 10x35 10003784
