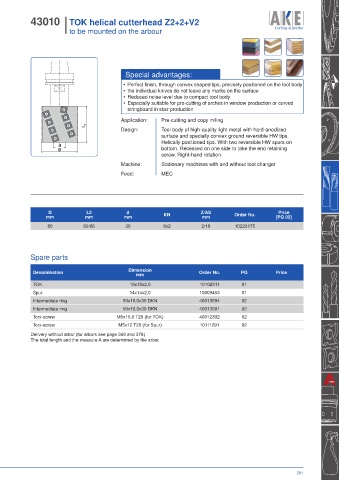

43010 I TOK helical cutterhead Z2+2+V2
I to be mounted on the arbour

Special advantages:

• Perfect finish, through convex shaped tips, precisely positioned on the tool body
• the individual knives do not leave any marks on the surface
• Reduced noise level due to compact tool body
• Especially suitable for pre-cutting of arches in window production or curved
stringboard in stair production

Application: Pre-cutting and copy miling
L 2
Design: Tool body of high-quality light metal with hard-anodized
surface and specially convex ground reversible HW tips.
Helically positioned tips. With two reversible HW spurs on
d
D bottom. Recessed on one side to take the end retaining
screw. Right-hand rotation
Machine: Stationary machines with and without tool changer
Feed: MEC

D L2 d Z/AS Price
mm mm mm KN mm Order No. [PG 02]
80 80/86 30 8x2 2/18 10226175

Spare parts

Denomination Dimension Order No. PG Price
mm
TOK 15x15x2,5 10102511 01
Spur 14x14x2,0 10009453 01
Intermediate ring 50x10,0x30 DKN 40013594 02
Intermediate ring 50x10,0x30 DKN 40013591 02
Torx-screw M5x15,5 T20 (for TOK) 40012392 02
Torx-screw M5x12 T20 (for Spur) 10111291 02

Delivery without arbor (for arbors see page 369 and 378)
The total length and the measure A are determined by the arbor.
