P. 271

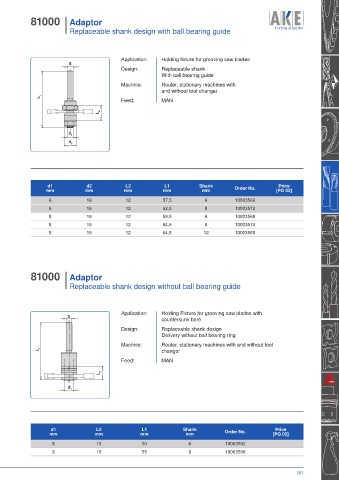

81000 I Adaptor
I Replaceable shank design with ball bearing guide
Application: Holding fixture for grooving saw blades
S
Design: Replaceable shank
With ball bearing guide
Machine: Router, stationary machines with
and without tool changer
L 1
Feed: MAN
L 2
d 1
d 2
d1 d2 L2 L1 Shank Price
mm mm mm mm mm Order No. [PG 02]
6 16 12 57,5 6 10003566
6 16 12 62,5 8 10003572
8 16 12 59,5 6 10003568
8 16 12 64,5 8 10003574
8 16 12 64,5 12 10003580
81000 I Adaptor
I Replaceable shank design without ball bearing guide
Application: Holding Fixture for grooving saw blades with
S
countersunk bore
Design: Replaceable shank design
Delivery without ball bearing ring
Machine: Router, stationary machines with and without tool
L 1 changer
Feed: MAN
L 2
d
1
d1 L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]
8 15 50 6 10003592
8 15 55 8 10003598
267
