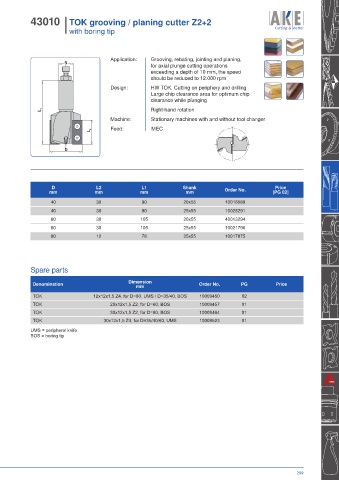

43010 I TOK grooving / planing cutter Z2+2
I with boring tip
Application: Grooving, rebating, jointing and planing,
S
for axial plunge cutting operations
exceeding a depth of 10 mm, the speed
should be reduced to 12.000 rpm
Design: HW TOK. Cutting on periphery and drilling
Large chip clearance area for optimum chip
clearance while plunging
L 1 Right-hand rotation
Machine: Stationary machines with and without tool changer
Feed: MEC
L 2
D
D L2 L1 Shank Price
mm mm mm mm Order No. [PG 02]
40 30 90 20x55 10018589
40 30 90 25x55 10028291
60 30 105 20x55 40013294
60 30 105 25x55 10021796
80 12 78 25x55 10017875
Spare parts
Denomination Dimension Order No. PG Price
mm
TOK 12x12x1,5 Z4, for D=80, UMS / D=35/40, BOS 10009450 02
TOK 20x12x1,5 Z2, for D=60, BOS 10009457 01
TOK 30x12x1,5 Z2, for D=80, BOS 10009464 01
TOK 30x12x1,5 Z4, for D=35/40/60, UMS 10009523 01
UMS = peripheral knife
BOS = boring tip
