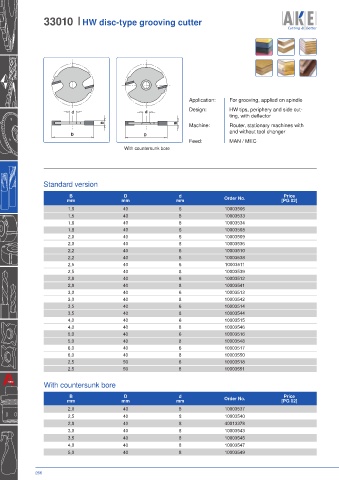

Page 270 - Catalogue_2025+

33010 I HW disc-type grooving cutter

Application: For grooving, applied on spindle
Design: HW tips, periphery and side cut-
d d
ting, with deflector
B B
Machine: Router, stationary machines with
and without tool changer
D D
Feed: MAN / MEC
With countersunk bore

Standard version

B D d Price
mm mm mm Order No. [PG 02]
1,5 40 6 10003506
1,5 40 8 10003533
1,6 40 8 10003534
1,8 40 6 10003508
2,0 40 6 10003509
2,0 40 8 10003536
2,2 40 6 10003510
2,2 40 8 10003538
2,5 40 6 10003511
2,5 40 8 10003539
2,8 40 6 10003512
2,8 40 8 10003541
3,0 40 6 10003513
3,0 40 8 10003542
3,5 40 6 10003514
3,5 40 8 10003544
4,0 40 6 10003515
4,0 40 8 10003546
5,0 40 6 10003516
5,0 40 8 10003548
6,0 40 6 10003517
6,0 40 8 10003550
2,5 50 6 10003518
2,5 50 8 10003551

With countersunk bore

B D d Price
mm mm mm Order No. [PG 02]
2,0 40 8 10003537
2,5 40 8 10003540
2,8 40 8 40013378
3,0 40 8 10003543
3,5 40 8 10003545
4,0 40 8 10003547
5,0 40 8 10003549

266
