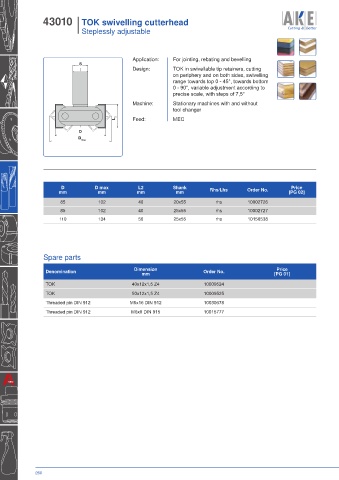

43010 I TOK swivelling cutterhead
I Steplessly adjustable
Application: For jointing, rebating and bevelling
S
Design: TOK in swivellable tip retainers, cutting
on periphery and on both sides, swivelling
range towards top 0 - 45°, towards bottom
0 - 90°, variable adjustment according to
precise scale, with steps of 7,5°
Machine: Stationary machines with and without
tool changer
L 2 Feed: MEC
D
D
max
D D max L2 Shank Price
mm mm mm mm Rhs/Lhs Order No. [PG 02]
85 102 40 20x55 rhs 10002726
85 102 40 25x55 rhs 10002727
110 134 50 25x55 rhs 10156538
Spare parts
Price
Denomination Dimension Order No. [PG 01]
mm
TOK 40x12x1,5 Z4 10009524
TOK 50x12x1,5 Z4 10009525
Threaded pin DIN 912 M5x16 DIN 912 10030678
Threaded pin DIN 912 M6x8 DIN 915 10015777
