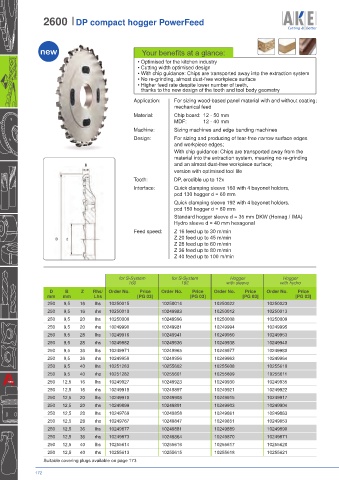

2600 I DP compact hogger PowerFeed

new Your benefits at a glance:

• Optimised for the kitchen industry
• Cutting width optimised design
• With chip guidance: Chips are transported away into the extraction system
• No re-grinding, almost dust-free workpiece surface
• Higher feed rate despite lower number of teeth,
thanks to the new design of the tooth and tool body geometry
Application: For sizing wood-based panel material with and without coating;
mechanical feed
Material: Chip board: 12 - 50 mm
MDF: 12 - 40 mm
Machine: Sizing machines and edge banding machines
Design: For sizing and producing of tear-free narrow surface edges
and workpiece edges;
With chip guidance: Chips are transported away from the
material into the extraction system, meaning no re-grinding
B and an almost dust-free workpiece surface;
version with optimised tool life
Tooth: DP, erodible up to 12x
Interface: Quick clamping sleeve 160 with 4 bayonet holders,
pcd 130 hogger d = 60 mm
Quick clamping sleeve 192 with 4 bayonet holders,
pcd 150 hogger d = 80 mm
Standard hogger sleeve d = 35 mm DKW (Homag / IMA)
Hydro sleeve d = 40 mm hexagonal
Feed speed: Z 16 feed up to 30 m/min
D d Z 20 feed up to 45 m/min
Z 28 feed up to 60 m/min
Z 36 feed up to 80 m/min
Z 40 feed up to 100 m/min

for S-System for S-System Hogger Hogger
160 192 with sleeve with hydro
D B Z Rhs/ Order No. Price Order No. Price Order No. Price Order No. Price
mm mm Lhs [PG 03] [PG 03] [PG 03] [PG 03]
250 9,5 16 lhs 10250015 10250014 10250022 10250023
250 9,5 16 rhs 10250010 10249983 10250012 10250013
250 9,5 20 lhs 10250000 10249996 10250008 10250009
250 9,5 20 rhs 10249990 10249981 10249994 10249995
250 9,5 28 lhs 10249916 10249941 10249950 10249953
250 9,5 28 rhs 10249882 10249936 10249938 10249940
250 9,5 36 lhs 10249971 10249965 10249977 10249980
250 9,5 36 rhs 10249958 10249956 10249963 10249964
250 9,5 40 lhs 10251283 10255602 10255608 10255610
250 9,5 40 rhs 10251282 10255601 10255609 10255611
250 12,5 16 lhs 10249927 10249923 10249930 10249935
250 12,5 16 rhs 10249918 10249897 10249921 10249922
250 12,5 20 lhs 10249910 10249908 10249915 10249917
250 12,5 20 rhs 10249899 10249891 10249903 10249904
250 12,5 28 lhs 10249769 10249858 10249861 10249863
250 12,5 28 rhs 10249767 10249847 10249851 10249853
250 12,5 36 lhs 10249877 10249881 10249889 10249890
250 12,5 36 rhs 10249873 10249864 10249870 10249871
250 12,5 40 lhs 10255614 10255616 10255617 10255620
250 12,5 40 rhs 10255613 10255615 10255618 10255621
Suitable covering plugs available on page 173
