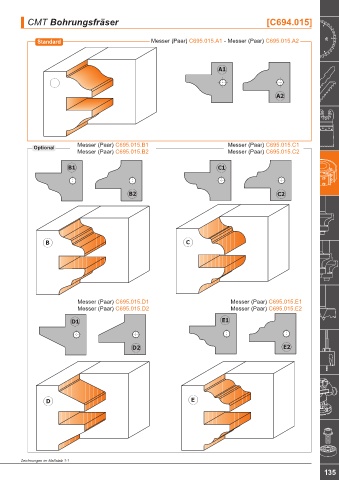

CMT Bohrungsfräser [C694.015]

Standard Messer (Paar) C695.015.A1 - Messer (Paar) C695.015.A2

A1
�

A2

Optional Messer (Paar) C695.015.B1 Messer (Paar) C695.015.C1
Messer (Paar) C695.015.B2 Messer (Paar) C695.015.C2

B1 C1

B2 C2

B C

Messer (Paar) C695.015.D1 Messer (Paar) C695.015.E1
B C
Messer (Paar) C695.015.D2 Messer (Paar) C695.015.E2

D1 E1

D E
D2 E2

D E
Messerkopf (3)
C790.076.00 HW-Wendeplatte 7,65x12x1,5mm
C695.999.07 Spannkeil 6,8x11x9,5mm
C990.063.00 Schraube M5x18mm
C991.072.00 Innensechkantschlüssel T20
C790.140.00 HW-Wendeplatte 14x14x2mm
C990.080.00 Schraube M5x6,5mm
C991.073.00 Innensechkantschlüssel T25
Zeichnungen im Maßstab 1:1
