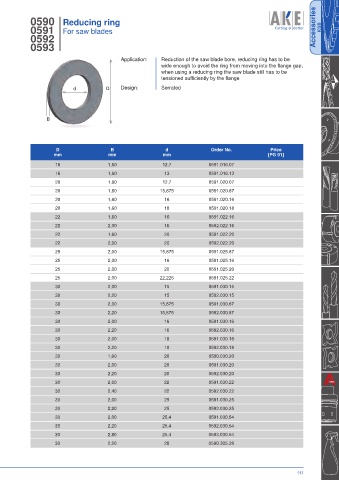

Page 121 - Catalogue_2025+

0590 I Reducing ring
0591 I For saw blades Accessories KSB
0592 I
0593 I

Application: Reduction of the saw blade bore, reducing ring has to be
wide enough to avoid the ring from moving into the flange gap,
when using a reducing ring the saw blade still has to be
tensioned sufficiently by the flange

d D Design: Serrated

B

D B d Order No. Price
mm mm mm [PG 01]
16 1,60 12,7 0591.016.07
16 1,60 13 0591.016.13
20 1,60 12,7 0591.020.07
20 1,60 15,875 0591.020.87
20 1,60 16 0591.020.16
20 1,60 18 0591.020.18
22 1,60 16 0591.022.16
22 2,00 16 0592.022.16
22 1,60 20 0591.022.20
22 2,00 20 0592.022.20
25 2,00 15,875 0591.025.87
25 2,00 16 0591.025.16
25 2,00 20 0591.025.20
25 2,00 22,225 0591.025.22
30 2,00 15 0591.030.15
30 2,20 15 0592.030.15
30 2,00 15,875 0591.030.87
30 2,20 15,875 0592.030.87
30 2,00 16 0591.030.16
30 2,20 16 0592.030.16
30 2,00 18 0591.030.18
30 2,20 18 0592.030.18
30 1,60 20 0590.030.20
30 2,00 20 0591.030.20
30 2,20 20 0592.030.20
30 2,00 22 0591.030.22
30 2,40 22 0592.030.22
30 2,00 25 0591.030.25
30 2,20 25 0592.030.25
30 2,00 25,4 0591.030.54
30 2,20 25,4 0592.030.54
30 2,80 25,4 0593.030.54
30 2,20 28 0590.305.28

117
