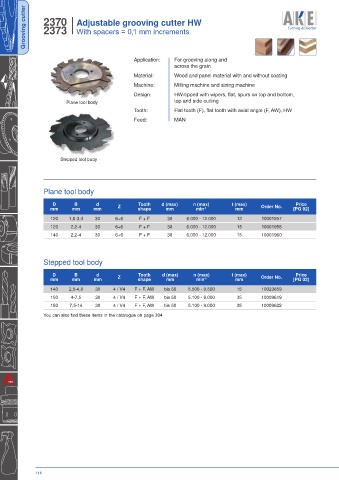

Grooving cutter 2370 I Adjustable grooving cutter HW

2373 I With spacers = 0,1 mm increments

Application: For grooving along and
across the grain
Material: Wood and panel material with and without coating
Machine: Milling machine and sizing machine
Design: HW-tipped with wipers, flat, spurs on top and bottom,
Plane tool body top and side cutting
Tooth: Flat tooth (F), flat tooth with axial angle (F, AW), HW

Feed: MAN

Stepped tool body

Plane tool body

D B d Tooth d (max) n (max) t (max) Price
mm mm mm Z shape mm min -1 mm Order No. [PG 02]
120 1,8-3,4 30 6+6 F + F 30 6.000 - 12.000 12 10001957
120 2,2-4 30 6+6 F + F 30 6.000 - 12.000 15 10001958
140 2,2-4 30 6+6 F + F 30 6.000 - 12.000 15 10001960

Stepped tool body

D B d Tooth d (max) n (max) t (max) Price
mm mm mm Z shape mm min -1 mm Order No. [PG 02]
140 2,5-4,8 30 4 / V4 F + F, AW bis 50 5.500 - 9.500 15 10023859
150 4-7,5 30 4 / V4 F + F, AW bis 50 5.100 - 9.000 35 10009619
150 7,5-14 30 4 / V4 F + F, AW bis 50 5.100 - 9.000 35 10009622
You can also find these items in the catalogue on page 304
