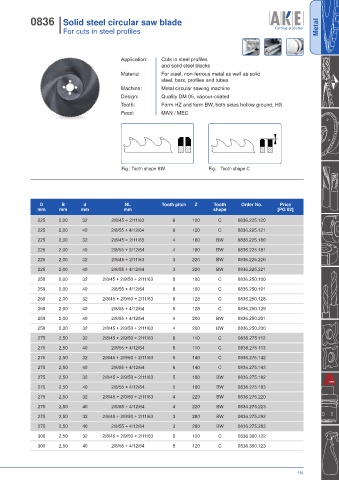

0836 I Solid steel circular saw blade
I For cuts in steel profiles Metal

Application: Cuts in steel profiles
and solid steel blocks
Material: For steel, non-ferrous metal as well as solid
steel, bars, profiles and tubes
Machine: Metal circular sawing machine
Design: Quality DM 05, vapour-coated
Tooth: Form HZ and form BW, both sides hollow ground, HS
Feed: MAN / MEC

Fig.: Tooth shape BW Fig.: Tooth shape C

D B d NL Tooth pitch Z Tooth Order No. Price
mm mm mm mm shape [PG 02]

225 2,00 32 2/8/45 + 2/11/63 6 120 C 0836.225.120
225 2,00 40 2/8/55 + 4/12/64 6 120 C 0836.225.121
225 2,00 32 2/8/45 + 2/11/63 4 180 BW 0836.225.180
225 2,00 40 2/8/55 + 2/12/64 4 180 BW 0836.225.181
225 2,00 32 2/8/45 + 2/11/63 3 220 BW 0836.225.220
225 2,00 40 2/8/55 + 4/12/64 3 220 BW 0836.225.221
250 2,00 32 2/8/45 + 2/9/50 + 2/11/63 8 100 C 0836.250.100

250 2,00 40 2/8/55 + 4/12/64 8 100 C 0836.250.101
250 2,00 32 2/8/45 + 2/9/50 + 2/11/63 6 128 C 0836.250.128
250 2,00 40 2/8/55 + 4/12/64 6 128 C 0836.250.129
250 2,00 40 2/8/55 + 4/12/64 4 200 BW 0836.250.201
250 2,00 32 2/8/45 + 2/9/50 + 2/11/63 4 200 BW 0836.250.200
275 2,50 32 2/8/45 + 2/9/50 + 2/11/63 8 110 C 0836.275.112

275 2,50 40 2/8/55 + 4/12/64 8 110 C 0836.275.113
275 2,50 32 2/8/45 + 2/9/50 + 2/11/63 6 140 C 0836.275.142
275 2,50 40 2/8/55 + 4/12/64 6 140 C 0836.275.143
275 2,50 32 2/8/45 + 2/9/50 + 2/11/63 5 180 BW 0836.275.182
275 2,50 40 2/8/55 + 4/12/64 5 180 BW 0836.275.183
275 2,50 32 2/8/45 + 2/9/50 + 2/11/63 4 220 BW 0836.275.220
275 2,50 40 2/8/55 + 4/12/64 4 220 BW 0836.275.223

275 2,50 32 2/8/45 + 2/9/50 + 2/11/63 3 280 BW 0836.275.292
275 2,50 40 2/8/55 + 4/12/64 3 280 BW 0836.275.283
300 2,50 32 2/8/45 + 2/9/50 + 2/11/63 8 120 C 0836.300.122
300 2,50 40 2/8/55 + 4/12/64 8 120 C 0836.300.123

115
