P. 412

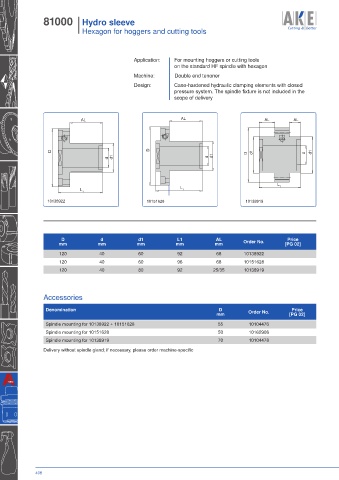

81000 I Hydro sleeve
I Hexagon for hoggers and cutting tools
Application: For mounting hoggers or cutting tools
on the standard HF spindle with hexagon
Machine: Double end tenoner
Design: Case-hardened hydraulic clamping elements with closed
pressure system. The spindle fixture is not included in the
scope of delivery
AL AL AL AL
D D D d1 d d1
d1 d d1
d
L
L 1
L 1 1
10138922 10151628 10138919
D d d1 L1 AL Price
mm mm mm mm mm Order No. [PG 02]
120 40 60 92 68 10138922
120 40 60 96 68 10151628
120 40 80 92 25/35 10138919
Accessories
Denomination D Order No. Price
mm [PG 02]
Spindle mounting for 10138922 + 10151628 55 10104476
Spindle mounting for 10151628 50 10162906
Spindle mounting for 10138919 70 10104478
Delivery without spindle gland; if necessary, please order machine-specific
