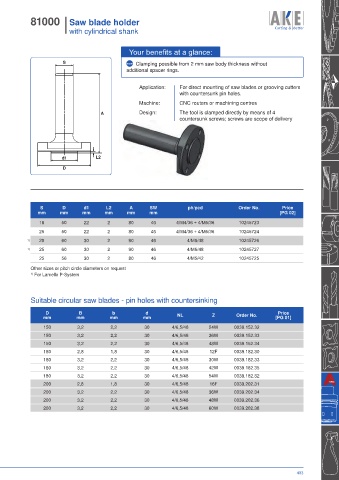

81000 I Saw blade holder
I with cylindrical shank

Your benefits at a glance:

S new Clamping possible from 2 mm saw body thickness without
additional spacer rings.

Application: For direct mounting of saw blades or grooving cutters
with countersunk pin holes.
Machine: CNC routers or machining centres
A Design: The tool is clamped directly by means of 4
countersunk screws; screws are scope of delivery

d1 L2
D

S D d1 L2 A SW ph/pcd Order No. Price
mm mm mm mm mm mm [PG 02]
16 50 22 2 80 46 4/M4/36 + 4/M5/36 10245723
25 50 22 2 80 46 4/M4/36 + 4/M5/36 10245724
1) 20 60 30 2 90 46 4/M6/48 10245726
1) 25 60 30 2 90 46 4/M6/48 10245727
25 56 30 2 80 46 4/M5/42 10245725
Other sizes or pitch circle diameters on request
1) For Lamello P-System

Suitable circular saw blades - pin holes with countersinking

D B b d Price
mm mm mm mm NL Z Order No. [PG 01]
150 3,2 2,2 30 4/6,5/48 24W 0039.152.32
150 3,2 2,2 30 4/6,5/48 36W 0039.152.33
150 3,2 2,2 30 4/6,5/48 48W 0039.152.34
180 2,8 1,8 30 4/6,5/48 12F 0039.182.30
180 3,2 2,2 30 4/6,5/48 30W 0039.182.33
180 3,2 2,2 30 4/6,5/48 42W 0039.182.35
180 3,2 2,2 30 4/6,5/48 54W 0039.182.32
200 2,8 1,8 30 4/6,5/48 16F 0039.202.31
200 3,2 2,2 30 4/6,5/48 36W 0039.202.34
200 3,2 2,2 30 4/6,5/48 48W 0039.202.36
200 3,2 2,2 30 4/6,5/48 60W 0039.202.38
