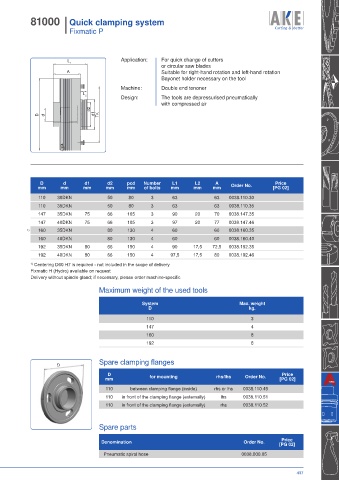

81000 I Quick clamping system
I Fixmatic P

Application: For mounting hoggers on standard spindles L 1 Application: For quick change of cutters
Homag / IMA d=35 DKN or circular saw blades
A Suitable for right-hand rotation and left-hand rotation
Bayonet holder necessary on the tool
Machine: Double end tenoner
L
2
Design: The tools are depressurised pneumatically
with compressed air
d2
D d d1 TK

D d d1 d2 pcd Number L1 L2 A Price
mm mm mm mm mm of bolts mm mm mm Order No. [PG 02]
110 30DKN 50 80 3 63 63 0038.110.30
110 35DKN 50 80 3 63 63 0038.110.35
147 35DKN 75 66 105 3 90 20 70 0038.147.35
147 40DKN 75 66 105 3 97 20 77 0038.147.46
1) 160 35DKN 80 130 4 60 60 0038.160.35
160 40DKN 80 130 4 60 60 0038.160.40
192 35DKN 80 66 150 4 90 17,5 72,5 0038.192.35
192 40DKN 80 66 150 4 97,5 17,5 80 0038.192.46
1) Centering D60 H7 is required - not included in the scope of delivery
Fixmatic H (Hydro) available on request
Delivery without spindle gland; if necessary, please order machine-specific
Maximum weight of the used tools

System Max. weight
D kg.
110 3
147 4
160 8
192 8

Spare clamping flanges
D
D Price
mm for mounting rhs/lhs Order No. [PG 02]
110 between clamping flange (inside) rhs or lhs 0038.110.49
110 in front of the clamping flange (externally) lhs 0038.110.51
110 in front of the clamping flange (externally) rhs 0038.110.52

Spare parts

Price
Denomination Order No. [PG 02]
Pneumatic spiral hose 0038.000.05
