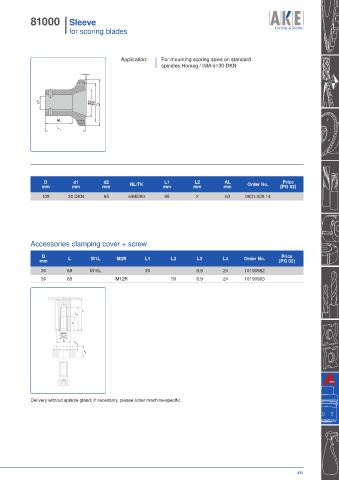

81000 I Sleeve
I for scoring blades
Application: For mounting scoring saws on standard
spindles Homag / IMA d=30 DKN
d1 d2 TK D
AL
L
1
D d1 d2 L1 L2 AL Price
mm mm mm NL/TK mm mm mm Order No. [PG 02]
108 30 DKN 65 6/M5/90 95 2 63 0031.000.14
Accessories clamping cover + screw
D Price
mm L M1L M2R L1 L2 L3 L4 Order No. [PG 02]
30 68 M16L 30 6,9 24 10190982
30 68 M12R 50 6,9 24 10190983
L
L 2
L 1
M2R
M1L
D
L 3
L 4
Delivery without spindle gland; if necessary, please order machine-specific
