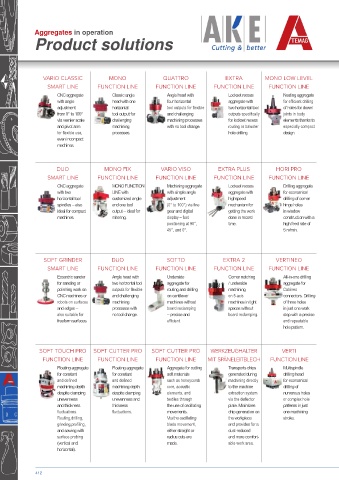

Page 416 - Catalogue_2025+

Aggregates in operation
Product solutions

VARIO CLASSIC MONO QUATTRO EXTRA MONO LOW LEVEL
SMART LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE
CNC aggregate Classic angle Angle head with Lockset recess Nesting aggregate
with angle head with one four horizontal aggregate with for efficient drilling
adjustment horizontal tool outputs for flexible two horizontal tool of holes for dowel
from 0° to 100° tool output for and challenging outputs specifically joints in body
via vernier scale challenging machining processes for lockset recess elements thanks to
and pivot arm machining with no tool change. routing or baluster especially compact
for flexible use, processes. hole drilling. design.
even incompact
machines.

DUO MONO FIX VARIO VISO EXTRA PLUS HORI PRO
SMART LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE
CNC aggregate MONO FUNCTION Machining aggregate Lockset recess Drilling aggregate
with two LINE with with simple angle aggregate with for economical
horizontal tool customized angle adjustment highspeed drilling of corner
spindles – also and one tool (0° to 100°) via fine mechanism for hinge holes
ideal for compact output – ideal for gear and digital getting the work in window
machines. mitering. display – fast done in record construction with a
positioning at 90°, time. high feed rate of
45°, and 0°. 5 m/min.

SOFT GRINDER DUO SOTTO EXTRA 2 VERTINEO
SMART LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE FUNCTION LINE
Eccentric sander Angle head with Underside Corner notching All-in-one drilling
for sanding or two horizontal tool aggregate for / underside aggregate for
polishing work on outputs for flexible routing and drilling machining Cabineo
CNC machines or and challenging on cantilever on 5-axis connectors. Drilling
robots on surfaces machining machines without machines in tight of three holes
and edges – processes with board reclamping spaces without in just one work
also suitable for no tool change. – precise and board reclamping. step with a precise
freeform surfaces. efficient. and repeatable
hole pattern.

SOFT TOUCH PRO SOFT CUTTER PRO SOFT CUTTER PRO WERKZEUGHALTER VERTI
FUNCTION LINE FUNCTION LINE FUNCTION LINE MIT SPÄNELEITBLECH FUNCTION LINE
Floating aggregate Floating aggregate Aggregate for cutting Transports chips Multispindle
for constant for constant soft materials generated during drilling head
and defined and defined such as honeycomb machining directly for economical
machining depth machining depth core, acoustic to the machine drilling of
despite clamping despite clamping elements, and extraction system numerous holes
unevenness unevenness and textiles through via the deflector or complex hole
and thickness thickness the use of oscillating plate. Minimizes patterns in just
fluctuations. fluctuations. movements. chip generation on one machining
Routing,drilling, Via the oscillating the workpiece stroke.
grinding,profiling, blade movement, and provides for a
and sawing with either straight or dust-reduced
surface probing radius cuts are and more comfort-
(vertical and made. able work area.
horizontal).
