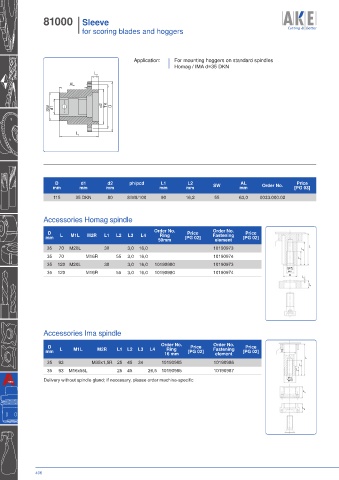

P. 410
81000 I Sleeve
I for scoring blades and hoggers
Application: For mounting hoggers on standard spindles
Homag / IMA d=35 DKN
L 2
AL
SW d1 d2 TK D
L 1
D d1 d2 ph/pcd L1 L2 AL Price
mm mm mm mm mm SW mm Order No. [PG 03]
115 35 DKN 80 8/M8/100 90 16,2 55 63,0 0033.000.02
Accessories Homag spindle
D Order No. Price Order No. Price
Ring
mm L M1L M2R L1 L2 L3 L4 50mm [PG 02] Fastening [PG 02]
element
35 70 M20L 30 3,0 16,0 10190973 L 2 L
35 70 M16R 55 3,0 16,0 10190974
L 1
35 120 M20L 30 3,0 16,0 10190980 10190973
M2R
35 120 M16R 55 3,0 16,0 10190980 10190974 M1L
D
L 3
L 4
Accessories Ima spindle
D Order No. Price Order No. Price
Ring
mm L M1L M2R L1 L2 L3 L4 16 mm [PG 02] Fastening [PG 02] D
element
L
35 93 M35x1,5R 25 45 34 10190985 10190986
L 2
35 93 M16x55L 25 45 26,5 10190985 10190987 L 1
M1L
Delivery without spindle gland; if necessary, please order machine-specific M2R
L 3
L 4
