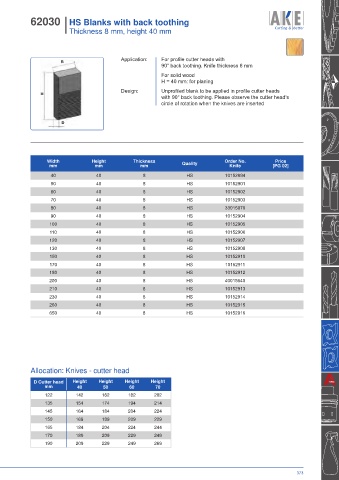

Page 377 - Catalogue_2025+

62030 I HS Blanks with back toothing
I Thickness 8 mm, height 40 mm

Application: For profile cutter heads with
B
90° back toothing. Knife thickness 8 mm
For solid wood
H = 40 mm: for planing
Design: Unprofiled blank to be applied in profile cutter heads
H
with 90° back toothing. Please observe the cutter head‘s
circle of rotation when the knives are inserted

D

Width Height Thickness Quality Order No. Price
mm mm mm Knife [PG 02]
40 40 8 HS 10152894
50 40 8 HS 10152901
60 40 8 HS 10152902
70 40 8 HS 10152903
80 40 8 HS 33015070
90 40 8 HS 10152904
100 40 8 HS 10152905
110 40 8 HS 10152906
120 40 8 HS 10152907
130 40 8 HS 10152908
150 40 8 HS 10152910
170 40 8 HS 10152911
180 40 8 HS 10152912
200 40 8 HS 40015640
210 40 8 HS 10152913
230 40 8 HS 10152914
260 40 8 HS 10152915
650 40 8 HS 10152916

Allocation: Knives - cutter head

D Cutter head Height Height Height Height
mm 40 50 60 70
122 142 162 182 202
135 154 174 194 214
145 164 184 204 224
150 169 189 209 229
165 184 204 224 244
170 189 209 229 249
190 209 229 249 269
