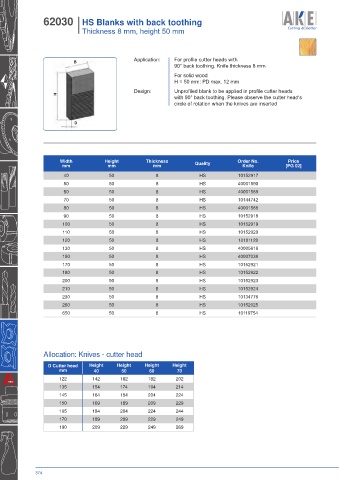

62030 I HS Blanks with back toothing
I Thickness 8 mm, height 50 mm

Application: For profile cutter heads with
B
90° back toothing. Knife thickness 8 mm
For solid wood
H = 50 mm: PD max. 12 mm
Design: Unprofiled blank to be applied in profile cutter heads
H
with 90° back toothing. Please observe the cutter head‘s
circle of rotation when the knives are inserted

D

Width Height Thickness Quality Order No. Price
mm mm mm Knife [PG 02]
40 50 8 HS 10152917
50 50 8 HS 40001590
60 50 8 HS 40001589
70 50 8 HS 10144742
80 50 8 HS 40001588
90 50 8 HS 10152918
100 50 8 HS 10152919
110 50 8 HS 10152920
120 50 8 HS 10101128
130 50 8 HS 40005616
150 50 8 HS 40007038
170 50 8 HS 10152921
180 50 8 HS 10152922
200 50 8 HS 10152923
210 50 8 HS 10152924
230 50 8 HS 10134776
260 50 8 HS 10152925
650 50 8 HS 10119754

Allocation: Knives - cutter head

D Cutter head Height Height Height Height
mm 40 50 60 70
122 142 162 182 202
135 154 174 194 214
145 164 184 204 224
150 169 189 209 229
165 184 204 224 244
170 189 209 229 249
190 209 229 249 269
