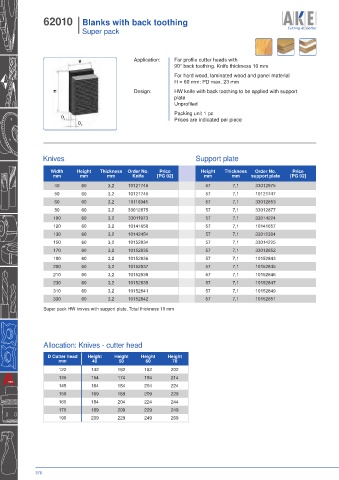

62010 I Blanks with back toothing
I Super pack

B Application: For profile cutter heads with
90° back toothing. Knife thickness 10 mm
For hard wood, laminated wood and panel material
H = 60 mm: PD max. 23 mm
Design: HW knife with back toothing to be applied with support
H
plate
Unprofiled
Packing unit 1 pc
D 1 Prices are indicated per piece
D 2

Knives Support plate

Width Height Thickness Order No. Price Height Thickness Order No. Price
mm mm mm Knife [PG 02] mm mm support plate [PG 02]
40 60 3,2 10121746 57 7,1 33012975
50 60 3,2 10121745 57 7,1 10121747
60 60 3,2 10116945 57 7,1 33012853
80 60 3,2 33012875 57 7,1 33012877
100 60 3,2 33011973 57 7,1 33014224
120 60 3,2 10141656 57 7,1 10141657
130 60 3,2 10142454 57 7,1 33012304
150 60 3,2 10152834 57 7,1 33014225
170 60 3,2 10152835 57 7,1 33012852
180 60 3,2 10152836 57 7,1 10152843
200 60 3,2 10152837 57 7,1 10152845
210 60 3,2 10152838 57 7,1 10152846
230 60 3,2 10152839 57 7,1 10152847
310 60 3,2 10152841 57 7,1 10152849
330 60 3,2 10152842 57 7,1 10152851
Super pack HW knives with support plate. Total thickness 10 mm

Allocation: Knives - cutter head

D Cutter head Height Height Height Height
mm 40 50 60 70
122 142 162 182 202
135 154 174 194 214
145 164 184 204 224
150 169 189 209 229
165 184 204 224 244
170 189 209 229 249
190 209 229 249 269

370
