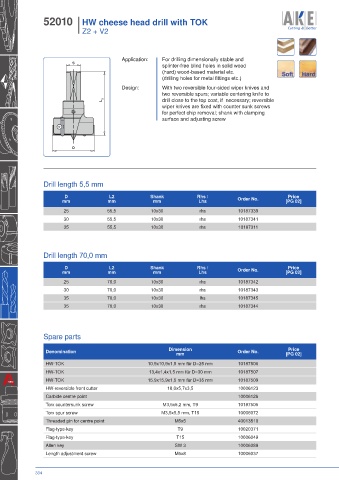

52010 I HW cheese head drill with TOK
I Z2 + V2

Application: For drilling dimensionally stable and
S
splinter-free blind holes in solid wood
(hard) wood-based material etc.
(drilling holes for metal fittings etc.)
Design: With two reversible four-sided wiper knives and
two reversible spurs; variable centering knife to
L 2 drill close to the top coat, if necessary; reversible
wiper knives are fixed with counter sunk screws
for perfect chip removal; shank with clamping
surface and adjusting screw

D

Drill length 5,5 mm
D L2 Shank Rhs / Price
mm mm mm Lhs Order No. [PG 02]

25 55,5 10x30 rhs 10187339
30 55,5 10x30 rhs 10187341
35 55,5 10x30 rhs 10187311

Drill length 70,0 mm

D L2 Shank Rhs / Price
mm mm mm Lhs Order No. [PG 02]
25 70,0 10x30 rhs 10187342
30 70,0 10x30 rhs 10187343
35 70,0 10x30 lhs 10187345
35 70,0 10x30 rhs 10187344

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
HW-TOK 10,9x10,9x1,5 mm für D=25 mm 10187506
HW-TOK 13,4x1,4x1,5 mm für D=30 mm 10187507
HW-TOK 15,9x15,9x1,5 mm für D=35 mm 10187509
HW-reversible front cutter 18,0x5,7x3,5 10006123
Carbide centre point 10006126
Torx countersunk screw M3,5x5,2 mm, T9 10187505
Torx spur screw M3,5x5,5 mm, T15 10006072
Threaded pin for centre point M5x5 40013510
Flag-type-key T9 10020371
Flag-type-key T15 10006049
Allen key SW 3 10006089
Length adjustment screw M5x8 10006037
